SKU: daviescraig-dc9051

DAVIES CRAIG EBP23 - ELECTRIC BOOSTER PUMP (12V) (9051)

$158.00

or 4 payments of $39.50 with Info



In Stock


Calculate Shipping



Australia wide rate - $30.00 (ETA: 3 days)

Description

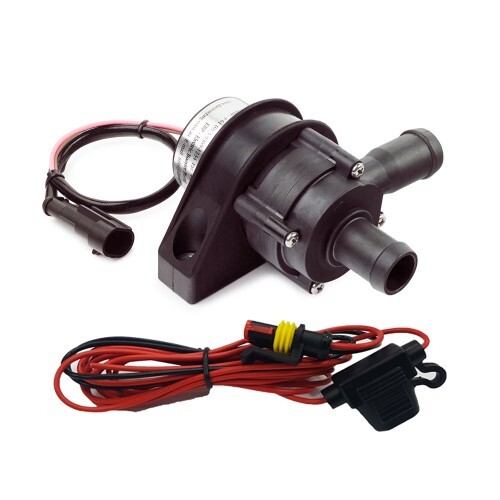

EBP23 - Electric Booster Pump (Part #9051) (PUMP ONLY)

The EBP23 is a ‘brushless’ 12 volt, high flow (23 litres / 6.08 gallons per minute), magnetically driven water pump. The EBP motor has no brushes to ever wear out and the pump is magnetically driven by the motor, which means that no shaft sealing is required. The many EBP applications include: booster for car heater and LPG systems, solar pump applications, water cooled motorcycle, go-kart engines, turbo air / water intercoolers & household irrigation.

 Kit Contents

Units
Electric Booster Pump - EBP23 1
Wiring Loom (AMP Plug)
1
Installation Instructions
1



 Technical Specifications

Motor  12V Brushless
Operating Voltage  6V to 18V
Rated Current Draw   1.25 Amps

Hose Size

19mm (3/4" Inch)

*With EBP Adapters Reducer

(19mm to 12mm)

Pump Design   Recirculating * Centrifugal
Input Power 15W
Max Flow Rate @ 0 Bar 23 l/min (6 gal/min)
Rated Flow Rate @ 0.1 Bar 17.25 l/min (4.6gal/min)
Max Head Height 2.5 meters
Drive   Magnetic – No seals
Operating Temperature   -40C to +125C (-10F to +257F)
Burst Pressure   250Kpa (36PSI)
IP Rating IP68
Self Priming No
Weight 364g (0.8 lbs)
Rated Life  20,000 hrs



The EBP23 is designed to complement your existing Davies, Craig EWP (Electric Water Pump), or belt-driven mechanical water pump, or improve your heater and/or cooling system or assist engine block cooling circulation. The EBP can continually circulate coolant around the engine head, block and by-pass. It has a high flow capacity and has the advantage of running at a speed independent of the engine speed. The EBP can also be set to continue running with a timer or thermal switch (not supplied) after engine shut down to prevent damaging heat soak.

EBP APPLICATION OPTIONS
The compact EBP23 has been designed for a number of applications;

  1. Circulation Pump for LPG Vehicles – The EBP improves water circulation through the engine block to prevent LPG injector from icing up. Other advantages include a more even engine temperature and better engine cooling.
  2. Heater Booster Pump – The EBP increases heater performance during normal vehicle operation and enables continued heater usage when engine is off (but IGNITION is ON).
  3. Water Pump for Liquid Cooled Motorcycle Engines - The EBP provides liquid circulation independent of the engine speed to provide cooling at all levels. It may be used with the EWP Digital Controller to replace the existing water pump or used with an override switch to compliment the existing system.
  4. Multi-Purpose Pump – The EBP may be used in a number of different applications where flow is required, such as irrigation, camping, solar pumps, go-karts or marine operations.



Head Pressure @ Maximum Flow

SKU daviescraig-dc9051
Brand DAVIES CRAIG
Shipping Weight 10.0000kg
Shipping Width 0.300m
Shipping Height 0.200m
Shipping Length 0.250m
