DAVIES CRAIG 5/16" (8mm) Adaptor Kit Transmission Oil Cooler (1005)
Description

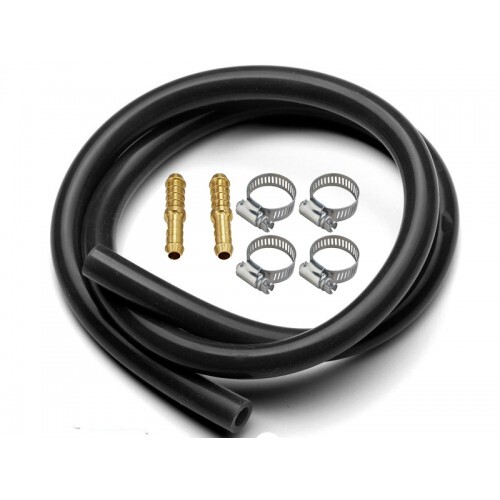

5/16" (8mm) Adaptor Kit - Transmission Oil Cooler (Part # 1005)
The Davies Craig 5/16" (8mm) Adaptor Kit contains everything you need to fit our Transmission Oil Cooler to a General Motors Automatic Transmission.
Davies Craig Transmission Oil Coolers come with a standard 3/8" Hose size.
| KIT CONTENTS | |
| DESCRIPTION | UNITS |
| 5/16” (8mm) Hose x 1.5m | 1 |
| Hose Clamps | 4 |
| 3/8 TO 5/16 REDUCER - BRASS | 2 |
| Instructions | 1 |
Transmission Oil Cooler Selection
|
| APPLICATION | |||
| Vehicle Type | Year of Manufacture | Engine Capacity | Medium Duty Part # | Heavy Duty Part # |
| Sedan / Wagon | Up to 1990* | Up to 2.0 litre | 401 | 403 |
| 2.0 - 4.0 litre | 403 | 404 | ||
| 4.0 litre and over | 404 | 676 or 677 | ||
| Commercial | Up to 1990* | Up to 2.0 litre | 401 | 403 |
| 2.0 - 4.0 litre | 404 | 676 or 677 | ||
| 4.0 litre and over | 678 or 679 or 691 or 698 | 678 or 679 or 691 or 698 | ||
| Sedan / Wagon | 1990 to Present | Up to 2.0 litre | 676 | 677 |
| 2.0 - 4.0 litre | 677 | 678 or 679 or 691 or 698 | ||
| 4.0 litre and over | 678 or 679 or 691 or 698 | 678 or 679 or 691 or 698 | ||
| Light Commercial (12 Volt circuit, Automatic Trans.) | 1990 to Present | Up to 2.0 litre | 676 | 677 or 678 |
| 2.0 - 4.0 litre | 677 | 678 or 679 or 691 or 698 | ||
| 4.0 litre and over | 678 or 679 or 691 or 698 | 678 or 679 or 691 or 698 | ||
| Light Commercial (24 Volt circuit, Automatic Trans.) |
| Up to 2.0 litre | 699 or 692 | 699 or 692 |
| 2.0 - 4.0 litre | 699 or 692 | 692 | ||
| 4.0 litre and over | 692 | 692 | ||
| V8s & 4WDs | 1990 to Present | Up to 2.0 litre | 676 | 677 |
| 2.0 - 4.0 litre | 678 or 679 or 691 or 698 | 678 or 679 or 691 or 698 | ||
| 4.0 litre and over | 678 or 679 or 691 or 698 | 678 or 679 or 691 or 698 | ||
| Ford EA-ED | all models | 6 cyl. | 677 | 677 |
| Ford EA-ED | all models | V8 | 678 | 678 |
| GM-Holden | all models | 6 cyl. & V8 | Select Part # as above plus #1005 | Select Part # as above plus #1005 |
Davies Craig Range of Transmission Oil Coolers
| Specifications | OVERALL | CORE |
| ||||||
| PART # | THICKNESS mm | WIDTH mm | HEIGHT mm | WIDTH mm | HEIGHT mm | INLET/OUTLET SIZE | CORE PART # | No. OF PLATES | HEAT TRANSFER RATE (BTU/hr) |
| 623 | 20 | 281 | 229 | 247 | 200 | 3/8” (9.5 mm) | 10861 | 23 | 13,937 |
| 676 | 20 | 281 | 141 | 281 | 112 | 3/8” (9.5 mm) | 10856 | 12 | 11,987 |
| 677 | 20 | 281 | 180 | 281 | 152 | 3/8” (9.5 mm) | 10859 | 17 | 13,394 |
| 678 / 698 | 20 | 281 | 213 | 281 | 184 | 3/8” (9.5 mm) | 10853 | 21 | 13,934 |
| 679 / 691 | 20 | 281 | 300 | 281 | 265 | 3/8” (9.5 mm) | 10854 | 30 | 15,710 |
| 1005 | 5/16” (8 mm) Adaptor Kit to suit GM transmissions (sold separately) | ||||||||
Specifications
| SKU | daviescraig-dc1005 |
| Brand | DAVIES CRAIG |
| Shipping Weight | 6.0000kg |
| Shipping Width | 0.300m |
| Shipping Height | 0.200m |
| Shipping Length | 0.250m |
