DAVIES CRAIG 14" Slimline Thermatic Electric Fan (12V) (0164)

Calculate Shipping

Australia wide rate - $30.00 (ETA: 3 days)

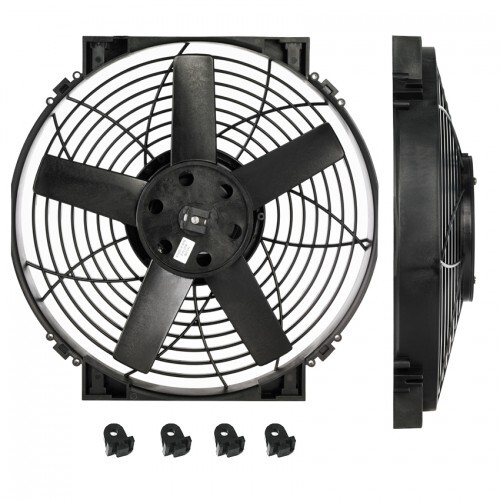

14" SLIMLINE THERMATIC Electric FAN (12 VOLT) (PART #0164)

All Davies Craig Thermatic Fan are packaged with fan assembly (motor, fan blade, shroud and mounting feet).

A Davies Craig Thermatic Fan is suitable for both condenser and radiator cooling. Thermatic Fans provide; Constant air flow, increased fuel economy, air conditioning performance, cooler engine running, low profile, high performance, increased engine power and fully reversible blades and polarity for bi-directional air flow.

These fan assemblies are set up for upstream applications.

For downstream applications the fan blade must be removed and turned over and the polarity reversed. Always check that the fan blade rotates in the direction shown by the arrows on the blade before making a permanent wiring connection and prior to fastening the unit to the radiator.

SPECIFICATIONS		COMPONENTS
Airflow	1021 CFM (ft3/min)	#10205	Motor (12 Volt)
Maximum current	11.0A (12 Volt) 5.5A (24 Volt)	#10318	Rotor (reversible, glass-filled nylon)
Weight	1.5 kg (3.3 lb)	#10371	Shroud (glass-filled polypropylene)
Dimensions	Height = 350mm Width= 348mm Depth = 76mm	#0604	Mounting feet

UNIVERSAL FAN FITTING KIT (sold separately]

SINGLE FAN MOUNTING HARDWARE KIT (12V) (1000)

SINGLE FAN MOUNTING HARDWARE KIT (24V) (1001)

DUAL FAN MOUNTING KIT - UNIVERSAL 12V (1002)

DUAL FAN MOUNTING KIT - UNIVERSAL 24V (1003)

FAN & TRANS OIL COOLER MOUNTING HARDWARE (UNIVERSAL) (0578)

The Davies, Craig Universal Fan Fitting Kit includes all parts necessary for mounting and wiring any 12- and 24-volt electric fans
– all Davies, Craig Thermatic Fans and other electric fan models.

THERMATIC / ELECTRIC FAN RANGE

Thermatic / Electric Fan Size	12 Volt	24 Volt	Airflow	Max Current	Weight	Height (mm)	Width (mm)	Depth (mm)
Thermatic / Electric Fan Size	Part #	Part #	Airflow	Max Current	Weight	Height (mm)	Width (mm)	Depth (mm)
8” Thermatic Fan	0135	0136	400 CFM	5.0A (12 Volt) 2.4A (24 Volt)	0.88 kg 1.9 lb	211	213	56
9” Thermatic Fan	0160	0161	591 CFM	6.5A (12 Volt) 3.25 (24 Volt)	0.93 kg 2 lb	242	250	55
10” Thermatic Fan	0145	0146	693 CFM	7.0A (12 Volt) 3.5A (24 Volt)	1.13 kg 2.5 lb	270	290	64
10” Slimline Thermatic Fan	0147	0148	696 CFM	7.0A (12 Volt) 3.5A (24 Volt)	1.13 kg 2.5 lb	278	275	56
11” Brushless Thermatic Fan	0120	N/A	1050 CFM	11.0A (12 Volt)	2.2 kg 4.9 lb	315	305	98
12” Thermatic Fan	0162	0163	847 CFM	9.0A (12 Volt) 4.5 (24 Volt)	1.45 kg 3.2 lb	293	293	58
14” Brushless Thermatic Fan	0140	N/A	1021 CFM	8.0A (12 Volt)	2.2 kg 4.85 lb	350	348	120
14” Slimline Thermatic Fan	0164	0165	1021 CFM	11.0A (12 Volt) 5.5 (24 Volt)	1.5 kg 3.3 lb	350	348	76
14” Hi-Power Thermatic Fan	0107	0108	1500 CFM	13.0A (12 Volt) 6.5 (24 Volt)	2.5 kg 5.5 lb	350	348	94
16” Thermatic Fan	0166	0172	2120 CFM	19.0A (12 Volt) 9.5 (24 Volt)	3.0 kg 6.6 lb	400	424	97

What size Thermatic Fan do I need?
If your car make is not listed in our Model Selection Guide (see the Davies, Craig website, www.daviescraig.com.au/catalogues) we suggest the following:

Measure your radiator core dimensions (width, depth and clearance - refer diagram below) and refer to “Fan Models” to check which fan/s will fit your core.
Davies Craig ThermaticFans are reversible (Ex: Brushless models) which means they can be mounted upstream or downstream, as illustrated below.
In general, one large fan will have better airflow than two smaller fans. Where radiator is rectangular there may be no choice but to fit two smaller fans; choose the largest that can be accommodated in space available. The fan can also be mounted offset from centre to clear engine components when mounted in the downstream position.
Note: Fans should not be fitted on opposite sides of radiator core unless these are offset such that the airflow of one is not interfering with the airflow of the other.
If you require advice, please contact Davies, Craig for assistance.

Fan Mounting Direction

2011_DCPL_Catalogue-15 - Fan Mounting Options.jpg

A Davies Craig Thermatic Electric Fan is suitable for condenser and radiator cooling. All Davies Craig Thermatic Fan are packaged with fan assembly (motor, fan blade, shroud and mounting feet).
