SKU: daviescraig-dc0107

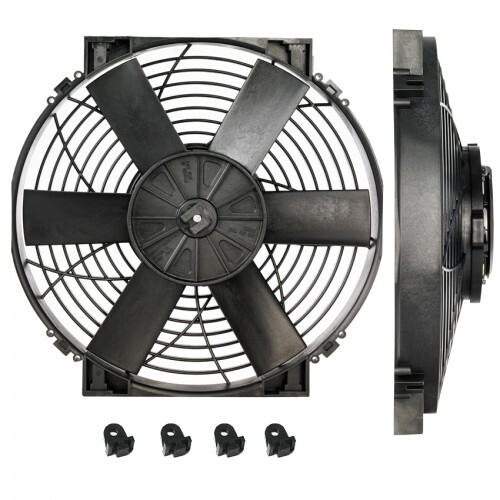

DAVIES CRAIG 14" Hi-Power Thermatic Electric Fan (12V) (0107)

$180.00

or 4 payments of $45.00 with Info



In Stock


Calculate Shipping



Australia wide rate - $30.00 (ETA: 3 days)

Description

14" HI-POWER THERMATIC Electric FAN (12V) (PART #0107)

All Davies Craig Thermatic Fan are packaged with fan assembly (motor, fan blade, shroud and mounting feet).

A Davies Craig Thermatic Fan is suitable for both condenser and radiator cooling. Thermatic Fans provide; Constant air flow, increased fuel economy, air conditioning performance, cooler engine running, low profile, high performance, increased engine power and fully reversible blades and polarity for bi-directional air flow.

These fan assemblies are set up for upstream applications.

For downstream applications the fan blade must be removed and turned over and the polarity reversed. Always check that the fan blade rotates in the direction shown by the arrows on the blade before making a permanent wiring connection and prior to fastening the unit to the radiator.

SPECIFICATIONS   COMPONENTS
Airflow 1500 CFM (ft3/min)   #10220 Motor (12 Volt)
Maximum current

13.0A (12 Volt)

6.5A (24 Volt)

  #10327 Rotor (reversible, glass-filled nylon)
Weight 2.5 kg (3.5 lb)   #10371 Shroud (glass-filled polypropylene)
Dimensions

Height = 350mm

Width= 348mm

Depth = 94mm

  #0604 Mounting feet



UNIVERSAL FAN FITTING KIT (sold separately]

hyperlink Image.jpg SINGLE FAN MOUNTING HARDWARE KIT (12V) (1000)

hyperlink Image.jpg SINGLE FAN MOUNTING HARDWARE KIT (24V) (1001)

hyperlink Image.jpg DUAL FAN MOUNTING KIT - UNIVERSAL 12V (1002)

hyperlink Image.jpg DUAL FAN MOUNTING KIT - UNIVERSAL 24V (1003)

hyperlink Image.jpg FAN & TRANS OIL COOLER MOUNTING HARDWARE (UNIVERSAL) (0578)

The Davies, Craig Universal Fan Fitting Kit includes all parts necessary for mounting and wiring any 12- and 24-volt electric fans
– all Davies, Craig Thermatic Fans and other electric fan models.

1000 - Kit (Small).jpg



THERMATIC / ELECTRIC FAN RANGE

Thermatic / Electric
Fan Size

12 Volt

24 Volt

Airflow

Max Current

Weight

Height

(mm)

Width

(mm)

Depth

(mm)

Part #

Part #

 8” Thermatic Fan

0135

0136

400 CFM

5.0A (12 Volt)

2.4A (24 Volt)

0.88 kg

1.9 lb

211

213

56

 9” Thermatic Fan

0160

0161

591 CFM

6.5A (12 Volt)

3.25 (24 Volt)

0.93 kg

2 lb

242

250

55

 10” Thermatic Fan

0145

0146

693 CFM

7.0A (12 Volt)

3.5A (24 Volt)

1.13 kg

2.5 lb

270

290

64

 10” Slimline Thermatic Fan

0147

0148

696 CFM

7.0A (12 Volt)

3.5A (24 Volt)

1.13 kg

2.5 lb

278

275

56

 11” Brushless Thermatic Fan

0120

N/A

1050 CFM

11.0A (12 Volt)

2.2 kg

4.9 lb

315

305

98

 12” Thermatic Fan

0162

0163

847 CFM

9.0A (12 Volt)

4.5 (24 Volt)

1.45 kg

3.2 lb

293

293

58

 14” Brushless Thermatic Fan

0140

N/A

1021 CFM

8.0A (12 Volt)

2.2 kg

4.85 lb

350

348

120

 14” Slimline Thermatic Fan

0164

0165

1021 CFM

11.0A (12 Volt)

5.5 (24 Volt)

1.5 kg

3.3 lb

350

348

76

 14” Hi-Power Thermatic Fan

0107

0108

1500 CFM

13.0A (12 Volt)

6.5 (24 Volt)

2.5 kg

5.5 lb

350

348

94

 16” Thermatic Fan

0166

0172

2120 CFM

19.0A (12 Volt)

9.5 (24 Volt)

3.0 kg

6.6 lb

400

424

97



What size Thermatic Fan do I need?
If your car make is not listed in our Model Selection Guide (see the Davies, Craig website, www.daviescraig.com.au/catalogues) we suggest the following:

  1. Measure your radiator core dimensions (width, depth and clearance - refer diagram below) and refer to “Fan Models” to check which fan/s will fit your core.
  2. Davies Craig Thermatic Fans are reversible (Ex: Brushless models) which means they can be mounted upstream or downstream, as illustrated below.
  3. In general, one large fan will have better airflow than two smaller fans. Where radiator is rectangular there may be no choice but to fit two smaller fans; choose the largest that can be accommodated in space available. The fan can also be mounted offset from centre to clear engine components when mounted in the downstream position.
    Note: Fans should not be fitted on opposite sides of radiator core unless these are offset such that the airflow of one is not interfering with the airflow of the other.
  4. If you require advice, please contact Davies, Craig for assistance.



Fan Mounting Direction

2011_DCPL_Catalogue-15 - Fan Mounting Options.jpg



A Davies Craig Thermatic Electric Fan is suitable for condenser and radiator cooling. All Davies Craig Thermatic Fan are packaged with fan assembly (motor, fan blade, shroud and mounting feet).

Specifications

SKU daviescraig-dc0107
Brand DAVIES CRAIG
Shipping Weight 10.0000kg
Shipping Width 0.300m
Shipping Height 0.200m
Shipping Length 0.250m
