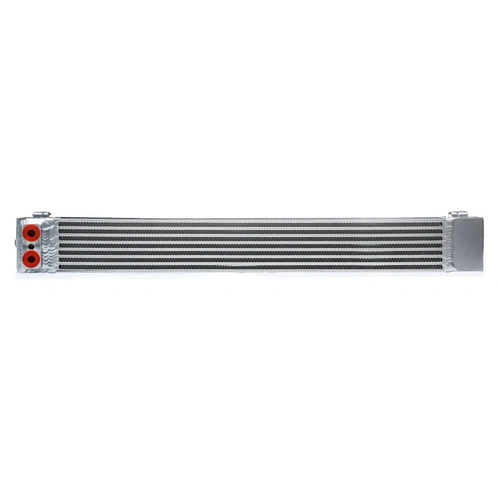

BMW E46 M3 / E39 M5 Race-Spec Dual-Pass Oil Cooler

While the E46 M3 and E39 M5 come with a factory oil cooler, it was obviously not designed for high performance driving. Just a few minutes on the track quickly shows how inadequate the factory cooler is. Dangerously high oil temperatures can lead to serious damage to your engine and need to be addressed.CSF and Rogue Engineering teamed up to create an oil cooler that could stand up to the rigors of track use while still being a simple and straightforward installation. The new oil cooler is over 2 times larger than the factory unit with a volume of 243 cubic inches (vs the factory unit's 103 cubic inches). This allows for cool, consistent temperatures in the hottest of days driven at the very limit.The CSF x Rogue oil cooler uses a Bar & Plate construction (vs. tube and fin) in a top/bottom configuration. The Bar & Plate design makes the cooler much more robust and able to take abuse from debris hitting it at high speeds on the road or track. The cooler uses extruded end tanks which means it is a much stronger design than simple bent Aluminium sheet construction found on the oem unit. The cooler is a bolt on design for the factory radiator or the CSF High-Performance Radiators (E46 M3 - CSF #7058 / E39 M5 - #7064) and uses the factory oil cooler lines.

The CSF #8032 Cooling product is designed to be a "Drop-In Fit" applications. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

Features and Benefits

• Designed, Developed, and Track Proven in Collaboration with BMW M3 Tuning Specialist and Parts Manufacturer, Rogue Engineering
• Replaces OEM Unit Single-Pass Design and Plastic Shroud with a Unique Top/Bottom Dual-Pass Design for Maximum Surface Area and Flow
• Drop-in Fit
• Fully TIG-Welded Extruded-Endtank Design vs. OEM Mechanically Jointed and Tack-Welded Design for Superior Reliability & Durability
• Fits Precisely with the Contour of the OEM Bumper - No Issues with Aftermarket Splitter Attachment
• Turbulated Heavy-Duty Bar/Plate Design for the Most Reliable & Durable Oil Cooler Available for the Platform
• 8 Rows of Maximum Cooling with a High Density Multi-Louvered Fin Pitch Design
• Designed to Work with OEM Radiator Brackets or CSF's All-Aluminium Triple-Pass Radiator (CSF #7058)
• Motorsport Silver Finish

Technical Specifications

• Core Material: Aluminium
• Finish/Color: Satin
• Installation Type: Drop-In Fit Installation
