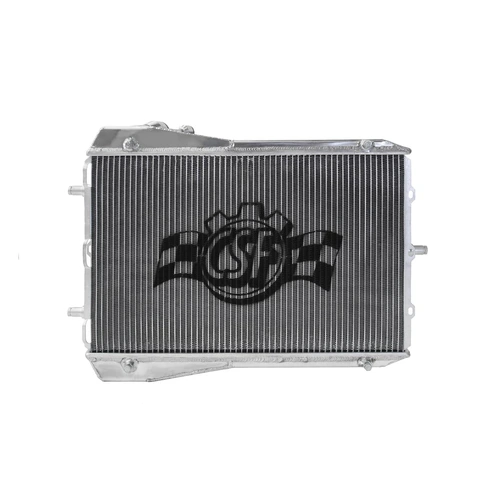

Porsche 996 Turbo / GT2 / GT3 / 997 Turbo / GT2 (Left) All-Aluminium Radiator

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your 996/997 running at its best, a CSF High-Performance All-Aluminium Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter Aluminium material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.The CSF 996/997 radiator is a true "Drop-in fit" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket. Trust the cooling experts at CSF for the best performing, highest-quality, and most reliable radiators.

The CSF #7056 Cooling product is designed to be a "Drop-In Fit" applications. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

Features and Benefits

• 2-Row 42mm Core Featuring CSF's Exclusive B-Tube Technology (+20% Efficiency)
• 6.5mm Fin Height w/ Multi-Louvered Design for Maximum Surface Area Contact
• Individually Leak and Pressure Tested
• All-Aluminium Design with 100% TIG-Welded End Tanks
• CNC Machined Brackets and Fittings for Superb Fit and Durability
• OEM-Style Machined Inlet/Outlet Connections
• Smooth Satin Finish
• Plug-and-Play "Drop-in" Fit with No Modifications Required for Installation
• Accepts OEM AC Condenser and Fan Shroud
• High-Performance Upgrade Suitable for Professional Racing, Street Performance, or OEM Replacement

Technical Specifications

• Core Material: Aluminium
• Finish/Color: Satin
• Installation Type: Drop-In Fit Installation
