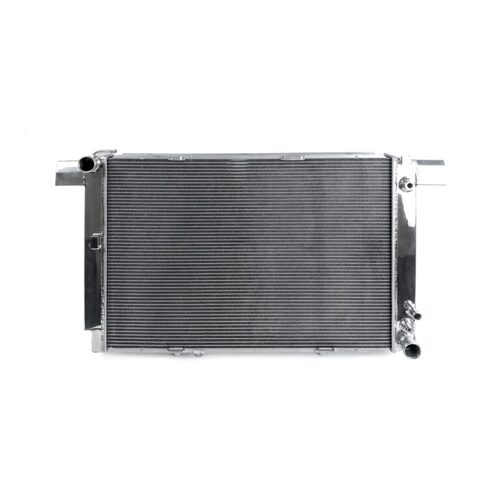

item: CSF Racing 2-Row 42mm Race Spec Aluminium Radiator for Mercedes 500SL/SL500 R129

CSF is proud to introduce another industry exclusive to its growing line of “Classic Series” radiators. An All Aluminum Replacement Radiator, yet still high performance, for the Mercedes Benz R129 SL500 5.0L V8 – CSF#8057. These over-engineered German sports cars from the ’90s were technically advanced for their time, and have now entered the “collectible” realm of car enthusiasts across the globe. With fitment spanning a 12-year range from 1990-2002, and some of these early model vehicles now nearing close to 30 years old, the factory radiators with plastic end-tanks need to be replaced.

Why?

• The OEM radiator with plastic end tanks can become brittle and crack/leak over time due to normal wear and tear and repeated on/off heat cycles.
• The OEM radiator core can possibly be clogged up with debris affecting the performance of the radiator.
• The OEM radiator may be corroded from the inside due to sediments in the water or lack of scheduled coolant flushes and changes. A common occurrence for vehicles that often sit or are stored, without being driven, for long periods of time.
• The normal life cycle for an OEM radiator is typical 5-10 years. Preventative replacement to a CSF all-aluminum radiator will ensure better performance, higher levels of reliability during driving, and be more durable as an upgraded high-performance replacement to the old or other aftermarket plastic/aluminum radiators.

The all-aluminum replacement radiator for the R129 SL500 features CSF’s known “drop-in fitment”, requiring no additional parts or modifications for installation as well as CSF’s exclusive B-Tube Technology core; the most advanced and efficient radiator core in the industry. CSF’s #8057 will install with no modifications to the OEM fan shroud, A/C condenser, OEM hoses, and all OEM ducting. A complete plug-and-play upgraded replacement solution.

CSF manufactures the most advanced and efficient radiator cores in the industry by using innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation. These techniques allow CSF to stay ahead of the pack when it comes to radiator technology.

B-TUBE TECHNOLOGY

Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in a shape of a "B." These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded.

The design (inlet in the middle of tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes "“ producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow."

High Efficiency multi-louvered fins

CSF uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.

DESIGN & ENGINEERING

CSF aims to lead the cooling system industry by introducing new technologies and manufacturing processes that allows us to be on the cutting edge of heat transfer innovation.

ADVANCED ENDTANK DESIGNS

CSF offers three all-aluminum end-tank designs to match any style and performance need.

FINISH

Each CSF high-quality radiator is completed with an industry-leading 1 hour, hand-polished "Show-Stopper" Mirror Finish. Our hand polishing tools and techniques in our new polishing center located at the end of the production line ensure that every CSF cooling system looks just as good as it performs.

Features:

• “Drop-in fit” requiring no modifications to install
• 2-row 42mm (Dual-Core) featuring CSF’s exclusive B-tube technology
• Ultra-efficient multi-louvered fin w/ 6.5mm fin height (for proper airflow to other cooling components). Resulting in optimal surface area contact and heat dissipation
• CNC machined brackets and fittings for superb fit and durability
• Slip-on hose fittings (35mm)
• 100% all-aluminum TIG-welded construction
• 2 year limited warranty

Vehicle Fitment:

Replaces OEM # 129-500-01-03

• 1990-1993 Mercedes Benz 500SL (5.0L V8)
• 1994-2002 Mercedes Benz SL500 (5.0L V8)
