CANchecked MFD32S Gen2 Programmable Touch Screen CanBus Display w/Shift Light for Universal
CANchecked MFD32S Gen2 Programmable Touch Screen CanBus Display w/Shift Light for Universal
CANchecked MFD32S Gen2 Programmable Touch Screen CanBus Display w/Shift Light for Universal
CANchecked MFD32S Gen2 Programmable Touch Screen CanBus Display w/Shift Light for Universal
CANchecked MFD32S Gen2 Programmable Touch Screen CanBus Display w/Shift Light for Universal
CANchecked MFD32S Gen2 Programmable Touch Screen CanBus Display w/Shift Light for Universal
CANchecked MFD32S Gen2 Programmable Touch Screen CanBus Display w/Shift Light for Universal
CANchecked MFD32S Gen2 Programmable Touch Screen CanBus Display w/Shift Light for Universal
CANchecked MFD32S Gen2 Programmable Touch Screen CanBus Display w/Shift Light for Universal
CANchecked MFD32S Gen2 Programmable Touch Screen CanBus Display w/Shift Light for Universal
CANchecked MFD32S Gen2 Programmable Touch Screen CanBus Display w/Shift Light for Universal
CANchecked MFD32S Gen2 Programmable Touch Screen CanBus Display w/Shift Light for Universal
SKU: canchecked-CC03002

CANchecked MFD32S Gen2 Programmable Touch Screen CanBus Display w/Shift Light for Universal

CANCHECKED

$979.95

or 4 payments of $244.99 with Info



In Stock


Calculate Shipping


Australia wide rate - $35.00


item: CANchecked MFD32S Gen2 Programmable Touch Screen CanBus Display w/Shift Light for Universal

Note: Universal kit does NOT include OBDII cable. Universal pigtail only included which can be used to manually connect to CANbus High/Low wires. OBDII cables sold separately. Certain Volkswagen/Audi vehicles will require specific OBDII cable here. Other 2008+ CANbus OBDII vehicle can use universal cable here. Not sure which cable to use? Contact us for assistance.

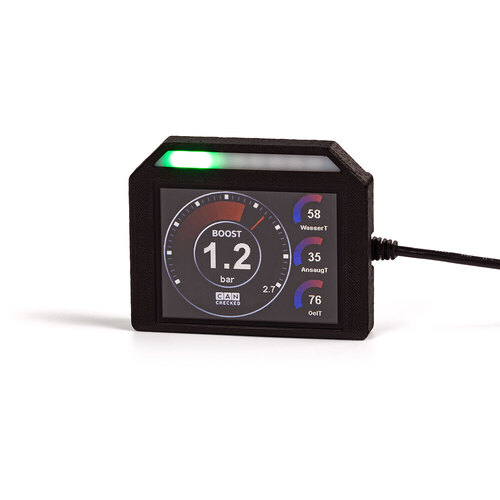

The CANchecked MFD32S is a large, 3.2" touch screen display which allows you to monitor a huge amount of information from your car's computer and incorporates a bright LED shift light. The MFD32S is a CANbus compatible device which is able to read information from most 2008-onwards vehicles by simply plugging into your vehicles OBDII port. CANbus is currently how newer vehicles send and receive data. Think of it as a USB port on a computer; whatever is plugged into a USB port can be opened and accessed from your computer. If your CANbus ECU has sensors plugged in, then in most cases plugging a CANchecked display will read it* (*see below for more information). Don't have a CANbus ECU in your car? No problem! The MFD32S can accept 4 additional analogue inputs including Flex Fuel sensors directly to the gauge. No ECA module required.

The MFD32S however is more than just a gauge. It is also a data logging tool, a CAN sensor hub, a CAN control switch, a shift light and a warning light! Read below for a full list of features. The MFD32S is a compact device and can used in both landscape and portrait orientations which you can then design in the DSS display setup software on your PC or Laptop. The MFD32S can be configured easily to display certain ECU values with a range of pre-made screen designs.

The internal shift light features 8 bright LED lights and is completely adjustable to set which RPM the lights will illuminate and at what point they change colour and flash.

The CANchecked MFD32S is one of the best ways to monitor and enjoy your vehicle.

Display technology LCD
resolution 320x240 COLOR
service capacitive touchscreen
Power supply 5V/12V/24V
Inputs  1x Can Bus
Outputs 4x Analog/Digital (0-5V)
1x PWM out
TTL
Updates by customer (USB)
Logging internal SD card
USB
Extensions GPS
RS232
CanBus 125/250/500/1000 kbit/s
termination via software
11bit identifier - CAN2.0A
29bit identifier - CAN2.0B
SAE J1939
DSS - display setup software

SKU canchecked-CC03002
Brand CANCHECKED
Shipping Weight 15.0000kg
Shipping Width 0.400m
Shipping Height 0.400m
Shipping Length 0.400m
