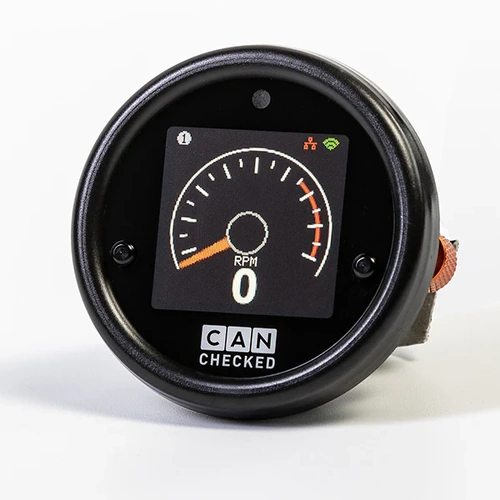

With this vehicle-specific CANchecked MFD15 Gen2 data display for your Mazda 6 MPS you always have all relevant values in view. The OLED screen ensures excellent readability even in direct sunlight. This kit includes a vehicle-specific bezel and connection kit, and operation is simple via two faceplate push buttons or the optional rotary knob.

Key Features:

• Compact design: 52 mm diameter, only 12.5 mm deep
• Integrated LED: can be configured as a shift light and/or warning indicator
• CAN Bus support: compatible with CAN ECUs, custom CAN streams, and OBD2 (2008+ VAG with extended data support)
• WiFi connectivity: configure via smartphone or PC using our Web App
• Additional inputs: supports up to 6 analog sensors or direct ethanol sensor* connection
• Preset alarms: easily configurable alerts, e.g., EGT above 900 °C
• Customization: upload your own startup logo and color scheme
• Online logging*: log data via smartphone or PC and save for later analysis
• Flex Fuel*: monitor ethanol content and fuel temperature
• CAN switching*: use buttons/rotary knob to control CAN switches and forward analog input data

Display Views:

Up to eight customizable pages, including:

• Analog pointer
• Double value
• Gear indicator
• 4-fold / 6-fold values
• Bar + double display
• Round display
• Performance meter
• Bar chart (1–6 fold upright or double across)
• Single value

Configuration (oDSS Software):

The MFD15 Gen2 includes WiFi access for setup via smartphone or PC. With oDSS, you can fully configure the display, log values (license required), upload a custom startup image, and perform updates.

Supported Values & ECUs:

The MFD15 Gen2 is compatible with ISO 11898-2 and SAE J2284 standards. Up to 64 sensors can be queried depending on ECU support. Supported out of the box:

• OBD2 – 11 and 29 bit
• Ecumaster (Classic & Black)
• VAG PQ34
• Haltech v2
• LinkECU
• MaxxECU
• Motec M1
• Emtron
• Megasquirt 2 & 3

Additional ECUs can be added via downloadable TRI/TRX files. For VAG vehicles (2008+), extended queries (oil temp, boost, transmission temp, ignition timing, etc.) are supported.

Integrated LED:

Configurable as a shift light (up to 8 colors, adjustable RPM thresholds) or as a warning LED (min/max thresholds per sensor). During warning mode, shift light function is deactivated.

Analog Input Support:

Six analog inputs (linear 0–5V and NTC sensors). Preconfigured by default:

• AIN1: Temperature sensor (NTC01)
• AIN2: EGT probe Type K (TCC01)
• AIN3: Pressure sensor 0–10 bar (FLP01)
• AIN4: Boost sensor 0–5.5 bar absolute (BST01)
• AIN5: Not preconfigured
• AIN6: Not preconfigured

Optional 4-way AIN harness available. Ethanol sensors can be connected directly with an additional license and 10K pull-up resistor.

Optional Accessories:

• CC22501 ETK01 – external rotary knob with 50 cm PnP cable
• CC22100 CBD08 – 8-way CAN distribution hub
• CC22780 ANC04 – 4-way AIN harness
• CC22902 NTC01 – liquid temperature sensor (1/8” NPT)
• CC22903 TCC01 – Type K transducer (0–1250 °C)
• CC22901 FLP01 – Pressure sensor 0–10 bar (145 psi) M10x1
• CC22900 BST01 – Boost sensor 0–5.5 bar absolute (80 psi)

Licenses (Optional):

•  Live Logging: Log all sensor data to oDSS for analysis and export.
•  Flex Fuel: Connect ethanol sensor directly, view ethanol content and fuel temperature, log values.
•  CAN Switching & AIN Forwarding: Control CAN switches via display/rotary knob and forward analog input data to the CAN bus.
