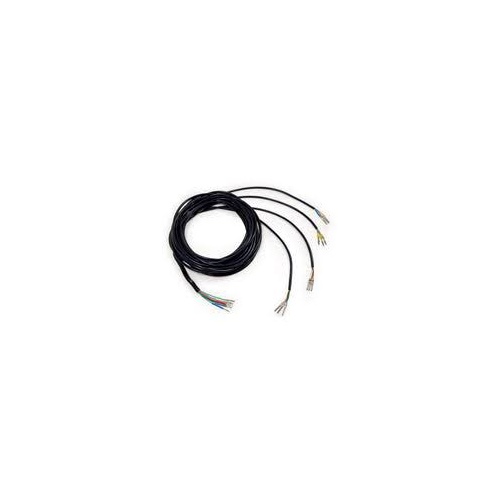

With the ANC04, you can connect up to four analog sensors to your MFD15/28/32 with minimal effort, without worrying about wiring or crimping the contacts. The ANC04 is directly compatible with our in-house sensors. As long as you follow our defined connection diagram, the NTC01 (NTC temperature sensor), TCC01 (Type-K exhaust gas temperature transducer), FLP01 (liquid pressure sensor), and BST01 (boost pressure sensor) sensors will work out of the box.

This means: plug the pins into the supplied mating connector, plug the wiring harness into the display, and then assign the appropriate widgets to the display, and you're ready for the road.

The ANC04 must be connected to both the display and the mating connectors of the sensors

First, please route the individual rods through the bulkhead or to the designated
locations (protect the crimps with masking tape during installation; do not
pin the sensors yet). Once you're ready, you can start pinning the crimps to the display connector according to the following diagram.

When connecting the Molex Microfit pins to the display connector, ensure the correct orientation! The open side of the Molex crimp with both arms of the pin (circled in blue) must point toward the release tab of the Molex connector housing (circled in red).

Features:

• Plug-and-play compatibility with CANchecked in-house sensors
• Uniform color scheme for clean, professional cabling
• No special tools required – pins are expertly pre-crimped
• 3 m length (300 cm) for versatile installation in any application
• Individual strands for maximum flexibility during routing
• Coated strands for long-lasting durability and protection

Fitment Table

Universal Fit
This product may require modification
