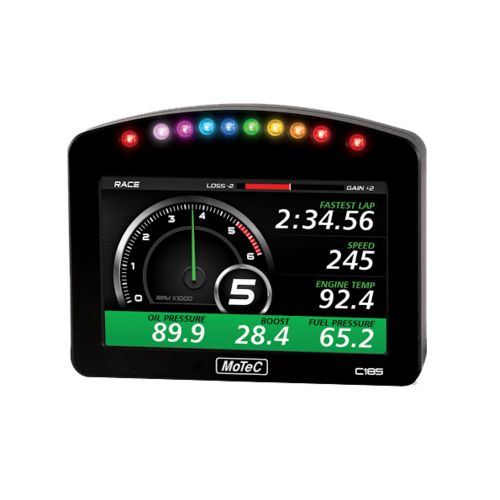

The C185 is a stunning full colour display combined with a powerful, professional level data logger. It comes standard with 250 MB internal logging memory and MoTeC's world-renowned i2 data analysis software. For more advanced data analysis, a Pro Analysis option is available.

C185s now offer the convenience and flexibility of USB Logging, an optional upgrade that can be enabled in the field at any time. This upgrade also increases the internal memory to 500 MB. In addition, recently built models provide three composite video inputs for a live camera feed on the display screen.*

The vivid 125mm screen (approx 5") is high resolution, ultra bright and anti-reflective for easy reading in direct sunlight. Choose from numerous selectable layouts and configure the channels and labels to suit, or opt for the Display Creator upgrade and treat your screen as a blank canvas with unique graphics, images, logos and custom icons. Create multiple pages to suit different scenarios, optimising the screen space for your application.

An array of ten full colour LEDs is integrated into the unit for use as shift lights, warning lights or other driver alerts. The colour, function and intensity of each LED is programmable, allowing users to develop their own unique strategies and sequences.

*Note: USB Logging and Live Video are recently added features that may not be available on devices already purchased. Compatible hardware can be identified by a mini USB port on the back of the unit. Earlier models without a USB port may be compatible but this functionality cannot be guaranteed.

BASIC SPECIFICATIONS

Display

For full customisation of the display layout and graphics, add the Display Creator option.
See examples.

• Screen: Colour TFT LCD, anti-reflective
• Resolution: 800 x 480, anti-aliased graphics
• Selectable fixed layouts with channel and label configurability

• 48 user-defined, scrollable message lines with programmable overrides
• 3 programmable 'pages', for example Practice, Warm-Up, Race

Logging

• 250 MB internal logging memory
• Optional USB Logging to a removable storage device (flash drive)

• includes upgrade to 500 MB internal memory

• requires compatible hardware*
• Logging rates up to 1000 samples per second
• Fast Ethernet download
• Includes i2 Standard data analysis software as standard (i2 Pro available as an upgrade)

Communications

• 4 x configurable CAN buses with individually programmable CAN bus speeds
• One can be used as RS232 Receive
• Two CAN buses support VIM/SVIM Expanders
• 2 x Dedicated RS232 ports

Physical

• Dimensions 134.5 x 101.8 x 19.4 mm excluding connector

• Weight 390 g

• 1 x 79 pin Autosport connector
• 1 x mini USB port
• Housing:IP67 rated
• Diffused LEDs


Inputs

• 10 x Analogue voltage inputs (20 with I/O Upgrade)

• 4 x Analogue temperature inputs (8 with I/O upgrade)

• 4 x Digital inputs
• 2 x Switch inputs

• 4 x Speed inputs
• 3 x Composite Video Inputs for the connection of PAL or NTSC cameras*

Outputs

• 6 x Low side outputs
• PWM or switched operation

Internal Sensors

• 3-axis G sensor
• Dash temperature sensor
• Sensor supply voltage
• Battery voltage

Expanders

• Compatible with MoTeC E888 and E816 Expanders, providing full functionality.
• Compatible with VIM/SVIM Expanders

*Compatible hardware can be identified by a mini USB port on the back of the unit.
