AUTOMETER LINE,BRAIDED SST,3 DIA.,4FT. LENGTH,-3AN +1/8" NPTF FITTINGS
AUTOMETER LINE,BRAIDED SST,3 DIA.,4FT. LENGTH,-3AN +1/8" NPTF FITTINGS
SKU: autometer-3235

AUTOMETER LINE,BRAIDED SST,3 DIA.,4FT. LENGTH,-3AN +1/8" NPTF FITTINGS

Part Number: # 3235

$143.64

or 4 payments of $35.91 with Info



In Stock


Calculate Shipping


Australia wide rate - $20.00 (ETA: 3 days)


Item: AUTOMETER LINE,BRAIDED SST,3 DIA.,4FT. LENGTH,-3AN +1/8" NPTF FITTINGS

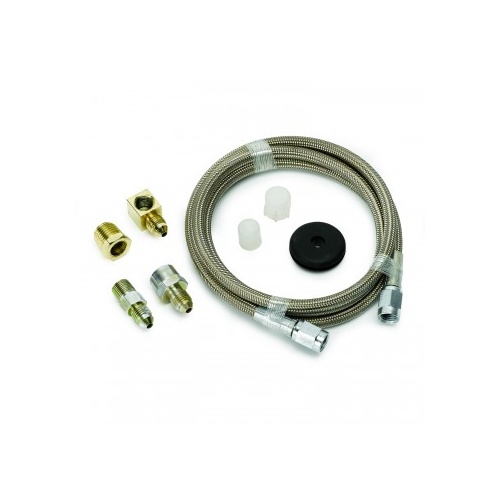

Includes 4ft. of #3 braided stainless steel line, firewall pass through grommet, 1/8" NPT female right angle to -3AN male fitting, -3AN male to 1/8" NPT male fitting, -3AN male to 1/8" NPT female fitting, 1/8" NPT to 1/4" NPT adapter bushing. Recommended for use with fuel pressure gauges. For use with mechanical pressure gauges and for remote mounting of electric gauge pressure senders.

Feature Points

  • 4ft hose length
  • PTFE lined hose, resistant to most fluids
  • Type 304 Stainless braid
  • Maximum Operating Pressure - 3000 PSI
  • Burst Pressure - 12,000 PSI
  • `-65 °F to 450 °F Operating Temperature Range
  • Includes 1/8"NPT male to -3AN female straight, 1/8" FPT Female to -3AN Male straight, 1/8" NPT Female to 1/4" NPT male straight, and -3AN to 1/8" NPT female 90 degree fittings

SKU autometer-3235
Brand AUTOMETER
Shipping Weight 3.0000kg
Shipping Width 0.250m
Shipping Height 0.100m
Shipping Length 0.200m
