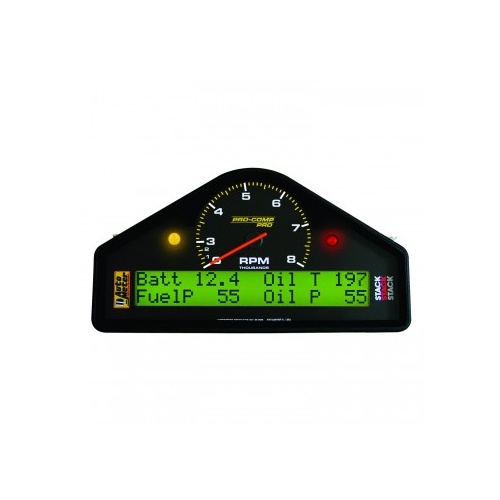

AUTOMETER GAUGE RACE DASH,0-3-8K RPM,PRO-COMP PRO # 6012

AutoMeter's preconfigured race dash displays can be installed on any application from the sportsman racer to the top tier motorsports team. In addition to all of the display perameters, the race dash display records your run and plays it back right on the dash.

AutoMeter recommends contacting our tech agents at (866)248-6357 prior to purchase for any questions or concerns regarding this product, installation, use, or accessories related to this product.

The AutoMeter Race display systems are designed specifically for the harshest environments. The carbon composite housing is IP67 sealed against water and dust intrusion and will easily withstand 20g of continuous vibration and 50g of shock. The analog pointer provides a quick and clear display for engine RPM while the digital display layout is configurable using preconfigured sensor inputs using multiple pages for your axillary instrumentation needs. User definable warnings display across the digital display and illuminate the warning LED placed to the side of the tachometer to alert the driver to critical information. Record and play back your run right on the face of the dash display.


Display Features:

• Dimensions - 8.3" Wide x 5.2-1/16" High x 1.4" Deep
• Carbon Composite Housing
• Single 19 pin MIL spec connector and motorsports wiring loom utilizing Mini Sure Seal connections for ease of installation and removal
• Includes oil pressure, water temperature, oil temperature , and fuel pressure sensors
• Display features digital values for vehicle parameters and configurable text warning messages
• Built-in warning and shift light LEDs
• Optional shift light output, single stage or progressive shift light

Inputs:

• Configurable Tachometer for 1 to 12 cylinders
• Vehicle speed
• Oil pressure
• Water temperature
• Oil temperature
• Fuel pressure
• Internal battery voltage

Environmental:

• IP67 sealed
• Operating temperature range: 20ºF to 180ºF
• Humidity: 0-100% RH
• Continuous vibration up to 20g, Shock up to 50g

Miscellaneous:

• Weight: 1.5lbs
• Motorsports grade wiring harness included

Upgrade:

• Data download upgrade with ST8185 - Allows the Race dash to download to DataPro software. Includes network harness, network to USB cable, and DataPro software
