AUTOMETER GAUGE ACTION REPLAY DASH,BLK,0-8K RPM (BAR,DEG. C,KM/H) # ST8100AR-A-E
AUTOMETER GAUGE ACTION REPLAY DASH,BLK,0-8K RPM (BAR,DEG. C,KM/H) # ST8100AR-A-E
SKU: autometer-ST8100AR-A-E

AUTOMETER GAUGE ACTION REPLAY DASH,BLK,0-8K RPM (BAR,DEG. C,KM/H) # ST8100AR-A-E

Part Number: # ST8100AR-A-E

$3,188.25


In Stock


Calculate Shipping


Australia wide rate - $20.00 (ETA: 3 days)


Item: AUTOMETER GAUGE ACTION REPLAY DASH,BLK,0-8K RPM (BAR,DEG. C,KM/H) # ST8100AR-A-E

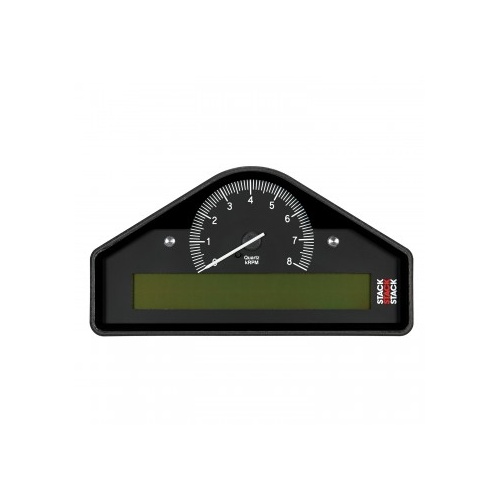

Specifically designed to offer an alternative to PC-based Data Logging systems, the Action Replay Dash Display provides the ideal introduction to multi-channel data recording for oval, sprint, hillclimb and drag racing. Combining the benefits of the action replay feature from the award winning professional recording tachometers with the multi-channel functionality of the ST8100 dash display, the Action Replay Dash provides "on display" recording and playback of a wide variety of vehicle parameters. These include engine speed data (RPM),oil pressure, water temperature, oil temperature, fuel pressure and battery voltage. The system also benefits from an Intelligent Alarm System, which continuously monitors engine condition and instantly informs the driver of any problem through both a warning on the display and alarm lights on the dash.

Feature Points

  • Record and Playback up to 2 hrs or 15 runs of displayed data
  • Displays: RPM, Oil Pressure and Temperature, Water Temperature, Fuel Pressure, and Battery Voltage. Speed optional with purchase of speed sensor separately.
  • Ideal for naturally aspirated race cars
  • Intelligent Alarm System. Inboard and External Shift & Alarm Light Outputs - 5 Stage External Sequential Shift Light Option
  • Sensors Included
  • Combination of Analog & Digital Display Types
  • Simultaneous display of up to 5 parameters
  • Optional Lap Time, Predictive Lap Display, Corner and Straight Speeds
  • Professional Wiring Loom with Military Connector

SKU autometer-ST8100AR-A-E
Brand AUTOMETER
Shipping Weight 3.0000kg
Shipping Width 0.300m
Shipping Height 0.100m
Shipping Length 0.200m
