AUTOMETER, TEST EQUIPMENT, # FAST-530

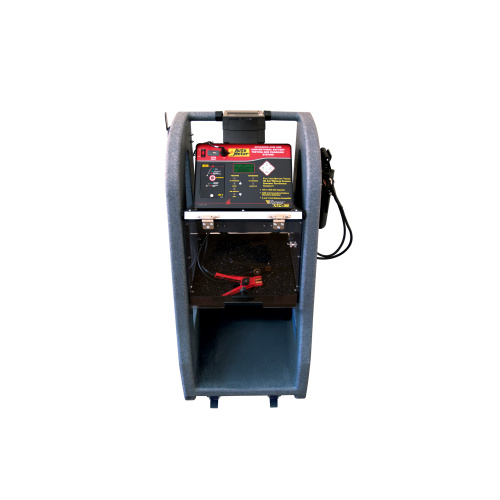

AUTOMETER FAST-530 Heavy-Duty Automated Electrical System Analyzer Bundle

Calculate Shipping

Australia wide rate - $20.00 (ETA: 3 days)

Description

Item: AUTOMETER FAST-530; Heavy-Duty Automated Electrical System Analyzer Bundle

BVA-230 - Intelligent Hand Held Electrical System Analyzer

One of the most technologically advanced handheld testers currently available, the BVA-230 sets the bar for accuracy, speed and ease of use. Using our patented Digital Pulse Load™ technology to deliver a BCI compliant true load test, the BVA-230 can precisely diagnose the battery, starting and charging system in under 82 seconds. This unit is AGM optimized for compatibility with nearly all battery types. This adds up to a tester that in many cases delivers a superior test result to even traditional Carbon Pile testers. A convenient USB output allows test data to be displayed as an Excel™ spreadsheet for nearly unlimited storage capacity and data analysis as well as easy software updates. Featuring a menu system revised to eliminate extra steps, nearly anyone can pick up the unit and use it right out of the box. Enhanced customer communications and “next step” messages aid in diagnosis and enhance credibility.

Export data to PC memory for unlimited test results storage
Optimized customer communication for faster/better interaction
Easy-Link communication to PC via USB
Self Diagnostics for improved reliability
Reverse polarity protected
64 Character backlit LCD screen
Customer communication via optional USB PC cable or infrared pinter
Convenienct clamp storage

XTC-160 - AGM Optimized Automatic Battery Testing Center and Fast Charger

The next generation of all-in-one battery charging and testing centers is here. The fully automatic smart charger/tester is AGM optimized to safely and accurately charge and diagnose nearly all types of batteries. Using our patented microprocessor technology, the XTC-160 can properly charge most batteries in under 30 minutes. There's even a status bar, so you know exactly how long the process will take.

Using out patented Digital Pulse Load™ technology to deliver a BCI compliant true load test, you can be assured of the most accurate battery test on the market. Our exclusive Smart Clamp™ technology allows for easy connections to both top and side terminal batteryies without use of adapters.

An integrated infraredtemperature sensor allows for exacting precision in diagnosis. A convenient USB output allows test data to be displayed in an Excel™ spreadsheet for nearly unlimited storage capacity and data analysys as well as easy software updates. Featuring a menu system revised to eliminate extra steps, nearly anyone can properly operate the unite right out of the box. Enhanced customer communications and ""next step"" messages aid in diagnosis and enhance credibility. The XTC-160 is also compatible with the optional AC-14 printer for a truely all-in-one solution.

Combination battery tester and fast charger
Patented Smart-Clamp™ top post/side post clamps - No side post adapters needed
New data export feature to USB flash drive - For unlimited test results storage
Self diagnostics for improved reliability
Easy-Link communication to PC via USB
Infrared temperature sensor for absolute accuracy
Time calculator - Estimates test time remaining
Reverse polarity protected
New circuitry, software, and controls for inhanced AGM, deep dycle, testing and accuracy
Charges most batteries within 30 minutes while monitoring battery state of health to ensure the battery is accepting a charge

FAST-530 Includes:

XTC-160 - Fast Charge/Tester
BVA-230 - Battery and Electrical System Tester
ES-11 - Equipment Stand
PR-16 - High Speed Printer
IR-1 - Infrared Printer Interface for BVA-230 Printing

Feature Points

Includes XTC-160 - fast charger/tester, BVA-230 - battery and electrical system tester, ES-11 - equipment stand, PR-16 - high speed printer, and IR-1 - infared printer interface for BVA-230 printing
Stores previous test results - downloadable to computer with USB thumb drive or direcly link to computer with dual USB connection
Tests flooded and AGM batteries as well as starting/charging circuits - also tests discharged batteries and detects bad cells
Advanced Digital Pulse Load (DPL) technology - patented test process and algorithm allowing operators of this product to rapidly measure a battery’s ability to provide adequate cranking power necessary to start the vehicle without the need for time consum
True-Load – This AutoMeter equipment is unique compared with other products on the market in that this tester has the ability to apply a known significant load (True-Load) directly through the tester connections allowing for a more rapid and accurate test
V-Drop Technology – this unique AutoMeter feature utilizes a patented process to automate the measurement of voltage drop in the charging circuit during starter engagement to ensure vehicle systems are operating at peak performance. This test occurs with
