SKU: autometer-1312

AUTOMETER 3-3/8" QUAD GAUGE,100 PSI/100-250F/8-18V/240-33 ?,ARCTIC WHITE # 1312

Part Number: # 1312

$448.33

or 4 payments of $112.08 with Info



In Stock


Calculate Shipping



Australia wide rate - $20.00 (ETA: 3 days)

Description

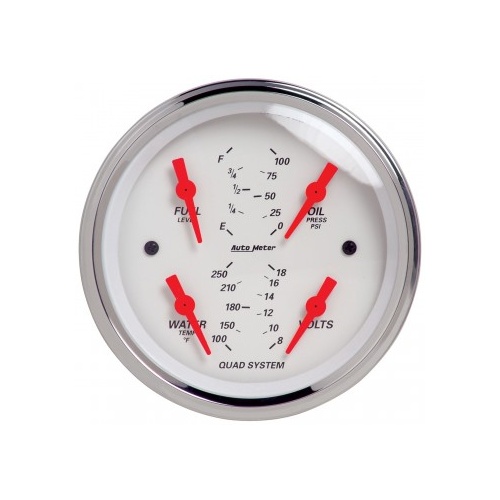

Item: AUTOMETER 3-3/8" QUAD GAUGE,100 PSI/100-250F/8-18V/240-33 ?,ARCTIC WHITE # 1312

Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter’s 3262 fuel level sender).

Feature Points

  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
  • Gauge kit includes 1/8” NPT pressure sender, 1/4” NPT adapter, 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation

Specifications

SKU autometer-1312
Brand AUTOMETER
Shipping Weight 3.0000kg
Shipping Width 0.300m
Shipping Height 0.100m
Shipping Length 0.200m
