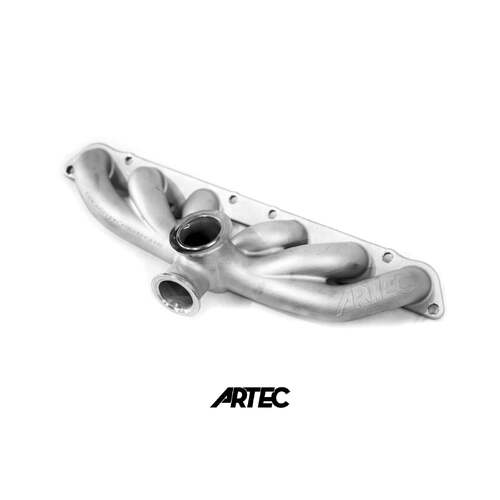

ARTEC V-BAND EXHAUST MANIFOLD for TOYOTA 2JZ-GE
ARTEC
Description
item: ARTEC V-BAND EXHAUST MANIFOLD for TOYOTA 2JZ-GE
Specifications:
- Material: SUS347 Stainless Steel Investment Cast Construction
Features:
- V-Band Mounting System
- Single 44/45/46mm Wastegate Flange Mount with up to 50mm possible
- High Horsepower, Maximum Response Design
Package Contents:
- Exhaust Manifold
Notes:
- Example compatible turbos: Garrett G25 to G35 or Precision 6466 to 6870.
- Designed in Australia with Lifetime Warranty*
See it in action on Drift HQ'såÊ2J powered BMW build!
The 2JZ-GE manifold has been designed for guys wanting up to 900hp whilst keeping as much response as possible.
Very easy access to all the nuts to reduce install time and cursing. All OEM fasteners can be used.
This manifold will accept turbos using a 50-55mm V-band inlet from as little as a G25-550 to G35-1050 to 6466 to 6870 all the way to a massive Xona 115-69 (1200hp) Turbos.
The wastegate port also uses our 44/45/46mm flanges to make it easy to source a wastegate, but to also allow for different designs, the manifold if you cut the standard flange off and weld a 50mm flange on will flow the full amount of a 50mm wastegate.
The manifold has been designed to flow well above any other compact designs on the market and has been proven to hold flawless boost control using a 45mm wastegate paired with a Xona 76mm turbo at 27psi.
At ARTEC we have revolutionised the turbo manifold industry with our industry-leading SUS347 stainless steel investment cast manifolds.
All of our manifolds are engineered and designed from the ground up, CFD simulated and, most importantly, tested in the real world to achieve maximum flow and heat dispersion. The cast stainless construction allows us to maximise flow and efficiency by having smooth merging angles and eliminating any restrictions from tight radius bends or runners.
The result is a truly optimised manifold with consistent performance, resistance to heat pooling and cracking, plus a beautiful smooth exterior finish.
Designed and tested in Australia, backed with a lifetime warranty.
(2JZ-GE-VBAND-EX)
SKU
2JZ-GE-VBAND-EX
Notes
- SUS347 Stainless Steel Investment Cast
- Single 44/45/46mm Wastegate Flange Mount (up to 50mm)
- Compact Design
Applications
TOYOTA MARK II/CHASER JZX90 JZX100
TOYOTA ARISTO JZS14 1991-1997
TOYOTA ARISTO JZS16 1997-2004
TOYOTA CROWN MAJESTA JZS, UZS 14# /15# 91-95/95-99
TOYOTA CROWN MAJESTA JZS, UZS 17# 99-2004
TOYOTA ALTEZZA SXE 10 1998-2005
Specifications
SKU | artec-2JZ-GE-VBAND-EX |
Brand | ARTEC |
Shipping Weight | 30.0000kg |
Shipping Width | 0.500m |
Shipping Height | 0.200m |
Shipping Length | 0.200m |
