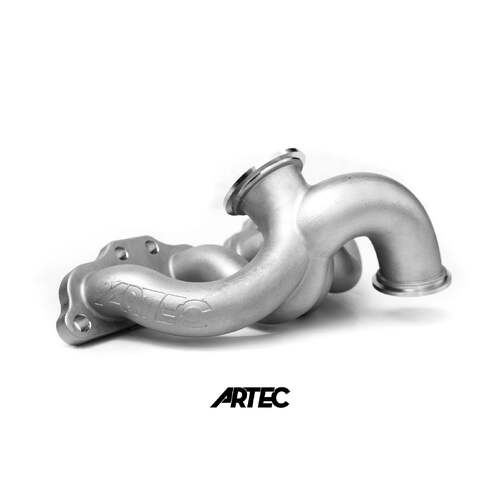

ARTEC V-BAND EXHAUST MANIFOLD for NISSAN SR20
ARTEC
Description
item: ARTEC V-BAND EXHAUST MANIFOLD for NISSAN SR20
Specifications:
- Material: SUS347 Stainless Steel Investment Cast Construction
- Weight: kg
Features:
- 33mm ID runners
- 50 to 55mm ID on the Inlet Flange
- Single 44/45/46mm Wastegate Flange Mount with up to 50mm possible positioned to allow for easy routing for a plumb back or vent-to-air layout
- Designed for easy oil and water line routing
- V-Band allows you to run a straightforward facing turbo layout pointed out to the side depending on taste and turbo selection.
Package Contents:
- Exhaust Manifold
Notes:
- Designed in Australia with Lifetime Warranty*
See it in action on Adam LZ's S15 running a Garrett G25 Turbo!
See it in action on TJ Hunt's S14 running a Garrett G25 Turbo!
https://www.youtube.com/watch?v=Kj-DYvA4O0I
--
The Artec Cast SR20 manifold has been designed to accept a wide variety of turbos that use a 50 to 55mm ID on the inlet flange. These include Precision, Tial, and Garrett. The wastegate has been positioned to allow for easy routing for a plumb back or vent-to-air layout. The wastegate comes fully machined to accept most 44/45/46mm wastegates. The wastegate pipe is also designed to flow up to a 50mm wastegate unit, so you would simply cut our flange off and weld the bigger unit on if required.
We use a 33mm ID runner (others normally use a 36/39/42) to help keep throttle response up, as well as transitioning from the SR20 exhaust port shape to our runner over a length of 45mm to aid in flow.
The design allows for very easy oil and water line routing.
The V-band also allows you to run a straightforward facing turbo layout pointed out to the side depending on the owner's taste and turbo selection.
åÊ
(SR20-VBAND-EX)
SKU
SR20-VBAND-EX
Notes
- SUS347 Stainless Steel Investment Cast
- 33mm ID Runners
- 50 to 55mm ID on the Inlet Flange
- Single 44/45/46mm Wastegate Flange Mount (up to 50mm)
- V-Band Mounting system
Applications
NISSAN SILVIA S13/180SX/240SX
NISSAN SILVIA S14/S15/200SX
Specifications
SKU | artec-SR20-VBAND-EX |
Brand | ARTEC |
Shipping Weight | 30.0000kg |
Shipping Width | 0.500m |
Shipping Height | 0.200m |
Shipping Length | 0.200m |
