Specifications:

• Material: SUS347 Stainless Steel Investment Cast Construction

Features:

• Machined for a 3.5" V-Band flange to make it easy for a full 3.5" exhaust or 3" system to be fabbed up
• 50-55mm V-Band mounting system to allow turbos as small as a G25 through to a 6870

Package Contents:

• 4" Dump Pipe

Notes:

• Designed in Australia with Lifetime Warranty*

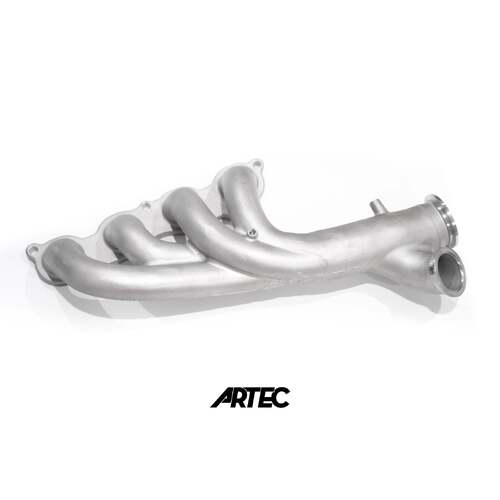

At ARTEC we have revolutionised the turbo manifold industry with our industry leading SUS347 stainless steel investment cast manifolds.

All of our manifolds are engineered and designed from the ground up, CFD simulated and, most importantly, tested in the real world to achieve maximum flow and heat dispersion. The cast stainless construction allows us to maximise flow and efficiency by having smooth merging angles and eliminating any restrictions from tight radius bends or runners.

The result is a truly optimised manifold with consistent performance, resistance to heat pooling and cracking, plus a beautiful smooth exterior finish.

Designed and tested in Australia, backed with a lifetime warranty.

--

On the dump and manifold, there are provisions to run a brace to keep the weight of the dump of the V-Band flange. The dump is machined for a 3.5" V-Band flange to make it easy for a full 3.5" exhaust or 3" system to be fabbed up. The manifold will also come with our innovative 50-55mm V-Band mounting system to allow turbos as small as a G25 through to a 6870 or down the track we will be releasing a weld-on piece that will allow 70mm V-Band flanges to go on so you can run the big boi turbos like @garrettmotion G40 G42 and G45's or @precisionturbo 6870 all the way up to 8685's.
