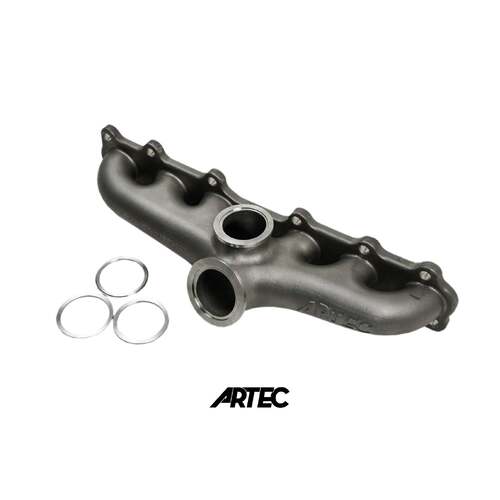

ARTEC (COMPACT) V-BAND EXHAUST MANIFOLD for TOYOTA 2JZ-GTE
ARTEC
Description
item: ARTEC (COMPACT) V-BAND EXHAUST MANIFOLD for TOYOTA 2JZ-GTE
Specifications:
- Material: SUS347 Stainless Steel Investment Cast Construction
Features:
- V-Band Mounting System
- Single 44/45/46mm Wastegate Flange Mount
- Compact Design
Package Contents:
- Exhaust Manifold
- V-Band Locating Rings
Notes:
- Designed in Australia with Lifetime Warranty*
See it in action with Speed Academy testing a Garrett G30 and G35 on our manifold!
Here is the 2JZ GTE V-Band (Compact) manifold. It?s designed for quick spooling of your turbo with minimum internal volume whilst having correct high flowing short radius?. The manifold was designed for up to 750whp but so far in testing there appears to be zero back pressure issues at 750whp. It uses our innovative multi-V-Band system that allows any 50-55mm V-Band turbo to mount to the manifold using our locating rings. You can also fit a range of 44/45/46mm wastegates. These are cast with 347 stainless steel.
--
At ARTEC we have revolutionised the turbo manifold industry with our industry-leading SUS347 stainless steel investment cast manifolds.
All of our manifolds are engineered and designed from the ground up, CFD simulated and, most importantly, tested in the real world to achieve maximum flow and heat dispersion. The cast stainless construction allows us to maximise flow and efficiency by having smooth merging angles and eliminating any restrictions from tight radius bends or runners.
The result is a truly optimised manifold with consistent performance, resistant to heat pooling and cracking, plus a beautiful smooth exterior finish.
Designed and tested in Australia, backed with a lifetime warranty.
(2JZ-GTE-VBAND-EX)
SKU
2JZ-GTE-VBAND-EX
Notes
- SUS347 Stainless Steel Investment Cast
- V-Band Mounting System
- Single 44/45/46mm Wastegate Flange Mount
- Compact Design
Applications
TOYOTA SUPRA JZA80 1993-2002
TOYOTA ALTEZZA SXE 10 1998-2005
Specifications
SKU | artec-2JZ-GTE-VBAND-EX |
Brand | ARTEC |
Shipping Weight | 30.0000kg |
Shipping Width | 0.500m |
Shipping Height | 0.200m |
Shipping Length | 0.200m |
