SKU: Alcon-CR6420

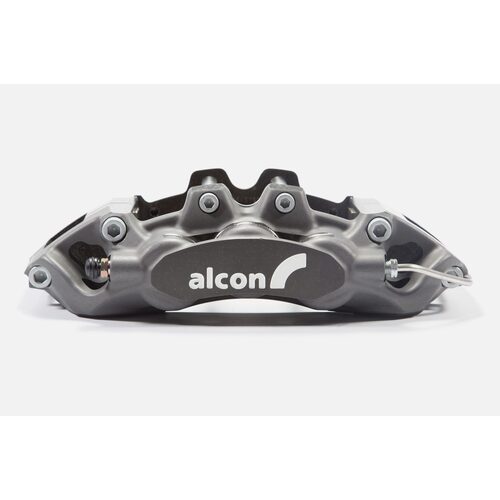

Alcon 6 Pot Calliper CR6420 (Per Calliper)
CR6420
Description
Item: Alcon 6 Pot Calliper CR6420 (Per Calliper)
Key features & benefits
Billet aerospace grade aluminium allow provides high strength and light weight
Differential piston diameters that minimise pad taper wear
Stainless steel pistons as standard
2kg anti-knock back springs
Hard stainless steel wear plates
Bolted pad retainer to increase stiffness, remove retainer to change pads
Specifications
Disc diameter range ?ÿ355 ÔÇô 390mm
Disc thickness range 34 ÔÇô 36mm
Fluid inlet 3/8-24 UNF (-3) female
Dry weight 3.35kg excluding pads
Alcon pad reference 4489, 25mm thick, 152mm long, 50.8mm deep, area 152cm2 or 54.0mm deep, area 155cm2
Specifications
SKU | Alcon-CR6420 |
Brand | ALCON |
Shipping Weight | 50.0000kg |
Shipping Width | 0.500m |
Shipping Height | 0.200m |
Shipping Length | 0.200m |
