SKU: Alcon-CRB343-SUB-294-NODI

Alcon 4-Piston CRB343 Caliper Upgrade Kit 294x24mm, No Discs for Subaru WRX/STI/Forester/BRZ/Toyota 86

CRB343-SUB-294-NODISC

$2,690.00


In Stock

Available Options


Calculate Shipping



Australia wide rate - $65.00

Description

Item: Alcon 4-Piston CRB343 Caliper Upgrade Kit 294x24mm, No Discs for Subaru WRX/STI/Forester/BRZ/Toyota 86

If you're chasing more braking performance from your Subaru or Toyota 86, look no further than this bolt-on Alcon 4-Piston upgrade kit. Don't waste time hunting down second-hand STI Brembos, these calipers bolt-on to the factory wheel hubs using the included brackets and brake lines and suit the standard WRX fitment 294mm disc.

Alcon was founded precisely because brakes are not just brakes. As well as being the primary active safety system on any car, the best brakes inspire confidence, augment the joy of driving and reduce lap times far more effectively and affordably than by adding power. And the best brakes are what we make, alongside clutch and pedal box systems for some of the most demanding and discerning clients on earth.



Calipers

Alcon CRB343 Calipers are a radial mount caliper for maximum rigidity and firm, consistent pedal

  • Differential piston diameters that minimise pad taper wear
  • Aluminium pistons as standard, stainless steel pistons available as an option to reduce heat transfer to brake fluid
  • 2kg anti-knock back springs
  • Hard stainless steel wear plates
  • Fixed pad retainer bars to increase stiffness, remove caliper to change pads



Discs:

Select between the following options for discs:

  • No Discs
    • Will require WRX fitment 294x24mm Discs
  • DBA T2 Street Slotted
    • DBA's Street Series T2 rotor provides all the benefits of DBA's Street Series direct replacement rotors with the added benefit of performance braking through the introduction of DBA's patented T2 slot design. The T2 slot design features precise CNC machined bi-symmetrical slots, resulting in a quieter, more responsive and smoother brake pedal feel. The T2 slot increases the number of exit points, allowing friction dust and gases to escape and enhancing the pad bite. DBA's revolutionary universal slot design also eliminates the need for separate left and right slot designs seen in traditional rotor designs.

  • DBA T3 4000 Slotted

    • DBA's 4000 Series T3 is the ultimate in direct replacement single-piece performance brake rotor. Featuring all the benefits of the 4000 Series plus DBA's patented world renowned T3 bi-directional slot design. Built on the foundations of DBA's T2 slot, the T3 slot design features additional, precise, CNC machined tri-symmetrical slots, resulting in an even quieter, more responsive and smoother brake pedal feel. The T3 slot increases the number of exit points for brake pad friction dust and gases to escape through, further increasing the consistency and effectiveness of every brake stop. DBA's revolutionary universal slot design eliminates the need for separate left and right slot designs seen in traditional rotor designs.

  • DBA T3 5000 2-Piece Slotted

    • Sharing all the benefits of the 4000 Series, DBA's 5000 Series rotors are a composite 2 piece direct replacement brake rotor. DBA uses only the highest quality materials to ensure optimal performance under the most strenuous circumstances, combining high carbon cast-iron rings with aerospace grade aluminium hats (T6061-T6), held together with National Aerospace Standards (NAS) bolts and crimp nuts. The 5000 Series share all of the performance technology featured in the 4000 Series, with the added benefits of further weight reduction and improved heat management via aluminium hats. DBA's 5000 Series T3 is the ultimate in direct replacement 2 piece performance brake rotor. Featuring all the benefits of the 5000 Series along with DBA's patented world renowned T3 bi-directional slot design.



Pads

Pads are not included so appropriate pads can be selected separately (street, track, race). We recommend the Hawk Performance range of brake pads. Compatible pads can be found here.

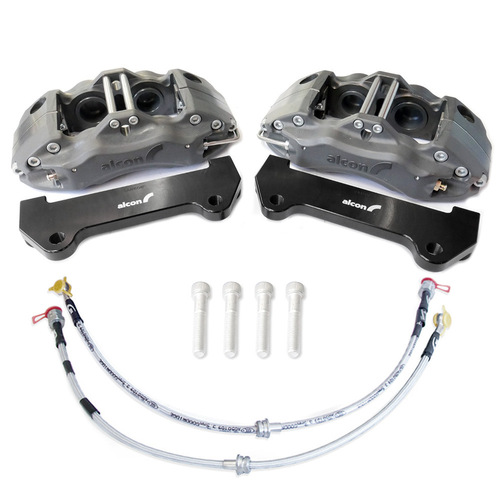

Kit Includes:

  • 2 x Alcon CRB343 4-Piston Calipers
  • 2 x Alcon Billet Mounting Brackets with Bolts (Factory bolts are also re-used)
  • 2 x Braided Brake Lines (ADR Approved)
  • 2 x DBA Brake Discs (If Selected)



Vehicle Fitment:

  • 1994-2000 Subaru Impreza/WRX/STI
  • 2001-2007 Subaru Impreza/WRX
  • 2008-2014 Subaru Impreza/WRX
  • 1997-2002 Subaru Forester SF (Inc GT)
  • 2003-2008 Subaru Forester SG (Inc XT)
  • 2008-2013 Subaru Forester SH (Inc XT)
  • 1993-1998 Subaru Liberty BD/BG
  • 1998-2003 Subaru Liberty BE/BH (Inc B4, GT)
  • 2004-2009 Subaru Liberty BL/BP (Inc GT)
  • 1998-2003 Subaru Outback BH (Inc XT)
  • 2004-2009 Subaru Outback BP (Inc XT)

Specifications

SKU Alcon-CRB343-SUB-294-NODI
Brand ALCON
Shipping Weight 50.0000kg
Shipping Width 0.500m
Shipping Height 0.200m
Shipping Length 0.200m
