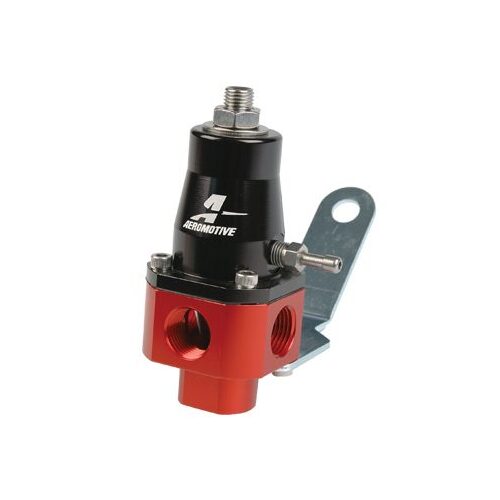

AEROMOTIVE Universal Return Style Regulator(13301)
AEROMOTIVE fuel pressure regulator 13301
Description
Description
A dual purpose, universal regulator for EFI or Carbureted and street or strip applications. Base pressure adjustable from 3 to 20 PSI with standard spring, (installed) or from 20 to 60 PSI with high pressure spring (included). Offers the full flow and rock steady fuel pressure that only a dynamic, Aeromotive return style regulator provides.
- Capable of regulating any fuel pump between 100 and 250 GPH.
- Fuel pressure rises on a 1:1 ratio when referencing boost.
- All ports are 3/8? NPT, with one inlet and three outlets on the main body and one return port on the bottom.
- Gasoline, ethanol, alcohol and diesel compatible.
- return style design provides the ultimate, dynamic fuel pressure control.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Note: (Requires a return line to be installed from the bottom of the regulator to the top of the tank.)
Additional information
Weight | 0.86 lbs |
---|---|
Dimensions | 5.5 × 5.5 × 2.75 in |
Mounting Configuration: External
CARB or EFI | Power Adder | FUEL | Horsepower |
---|
P/N 13301: Universal Return Style Regulator
A dual-purpose, universal regulator for EFI or Carbureted and street or strip applications. Base pressure adjustable from 3 to 20 PSI with standard spring, (installed) or from 20 to 60 PSI with high-pressure spring (included). It offers the full flow and rock steady fuel pressure that only a dynamic, Aeromotive return style regulator provides.
- Capable of regulating any fuel pump between 100 and 250 GPH.
- Fuel pressure rises on a 1:1 ratio when referencing boost.
- All ports are 3/8? NPT, with one inlet and three outlets on the main body and one return port on the bottom.
- Gasoline, ethanol, alcohol and diesel compatible.
- return style design provides the ultimate, dynamic fuel pressure control.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Note: (Requires a return line to be installed from the bottom of the regulator to the top of the tank.)
Specifications
SKU | aeromotive-13301 |
Brand | AEROMOTIVE |
Shipping Weight | 10.0000kg |
Shipping Width | 0.400m |
Shipping Height | 0.200m |
Shipping Length | 0.300m |
