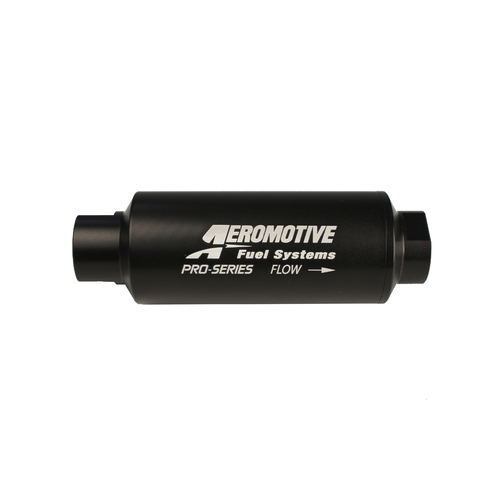

AEROMOTIVE Pro-Series 10-m Fabric, AN-12 ORB Fuel Filter(12310)
AEROMOTIVE fuel filter 12310
Description
Description
An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. Aeromotive offers filtration suitable for 200 - 4,000 plus HP applications burning, gas, ethanol and methanol fuels. Our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish youve come to expect from all Aeromotive components.
- High-flow, 10-micron fabric (cellulose) replaceable element
- Flows 2,000 lb/hr with a pressure drop of less than .5 PSI.
- AN-12 ORB ports. Fittings available to adapt these filters to AN-12, -10 line sizes. (see Fittings & Adapters)
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Pro-Series filters feature an indestructible Hard-Coat Black finish.
- 7″ long x 2.5″ diameter.
- Replacement element
Additional information
Weight | 1.48 lbs |
---|---|
Dimensions | 8.5 x— 4.75 x— 4 in |
Mounting Configuration: External
CARB or EFI | Power Adder | FUEL | Horsepower |
---|
P/N 12310: Pro-Series 10-m Fabric AN-12 ORB Fuel Filter
An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. Aeromotive offers filtration suitable for 200 - 4,000 plus HP applications burning, gas, ethanol and methanol fuels. Our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish youve come to expect from all Aeromotive components.
- High-flow, 10-micron fabric (cellulose) replaceable element
- Flows 2,000 lb/hr with a pressure drop of less than .5 PSI.
- AN-12 ORB ports. Fittings available to adapt these filters to AN-12, -10 line sizes. (see Fittings & Adapters)
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Pro-Series filters feature a tough, Hard-Coat Black finish.
- 7″ long x 2.5″ diameter.
- Replacement element
Specifications
SKU | aeromotive-12310 |
Brand | AEROMOTIVE |
Shipping Weight | 10.0000kg |
Shipping Width | 0.400m |
Shipping Height | 0.200m |
Shipping Length | 0.300m |
