AEROMOTIVE plumbing fitting 15203

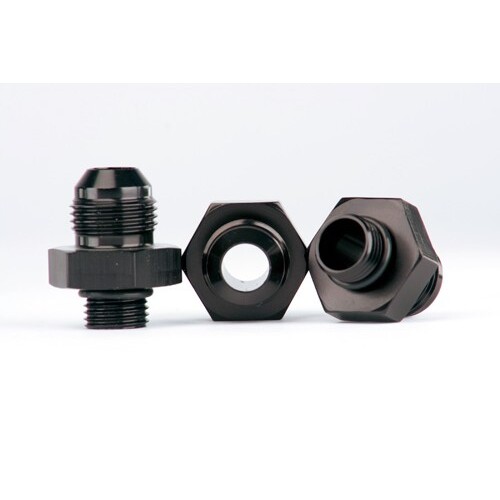

AEROMOTIVE Port Fitting Kit: (X3) ORB-06 to AN-08(15203)

Calculate Shipping

Australia wide rate - $30.00 (ETA: 3 days)

Description

Contains (3) ORB-06 to AN-08 Male Flare Fittings – P/N 15649. Ideal for use with regulators equipped with ORB-06 ports where AN-08 fuel line connections are desired. Fits various Aeromotive EFI and Carburetor regulators including:

EFI Regulators P/N 13109, 13138, 13129
Carburetor Regulators P/N 13201, 13211, 13123, 13204, 13224

Aeromotive port fittings provide maximum flow area and a long radii for smoother transitions from the inlet to the outlet, eliminating fitting cavitation and flow restrictions.

The Aeromotive line of custom fittings, adapters and hose-ends are a step above the norm, offering uncompromised fuel flow and positive sealing. Constructed of 6061 T6 aircraft grade aluminum or stainless steel, each component is CNC-machined for precision fit and unmatched flow. All billet aluminum fittings are anodized Type II bright dip black for corrosion protection and unrivaled aesthetics. We offer a complete line of hard to find fittings from OEM specific connections to AN adapters. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

All Aeromotive fittings and adapters are fully compatible with gasoline and alcohol based fuels.

Additional information

Weight	0.33 lbs
Dimensions	5.5 × 3.63 × 1.25 in

Mounting Configuration: External

CARB or EFI	Power Adder	FUEL	Horsepower

P/N 15203 ORB-06 to AN-08 Reverse Port Adapter Kit
(X3) P/N 15606 ORB-06 to AN-08 Male Flare Fittings

Ideal for use with regulators with ORB-06 ports where AN-08 fuel line connections are desired. Includes 3 fittings for various Aeromotive EFI and Carburetor regulators including:

EFI Regulators P/N:
- 13109, 13138, 13129
Carburetor Regulators P/N:
- 13201, 13211, 13123, 13204, 13224

Aeromotive port fittings provide maximum flow area and a long radii for smoother transitions from the inlet to the outlet, eliminating fitting cavitation and flow restrictions. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
