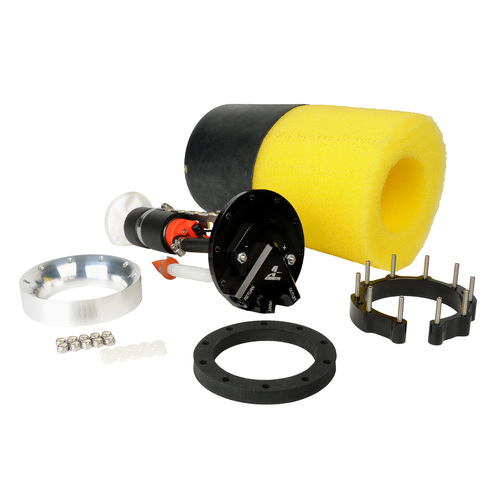

AEROMOTIVE Phantom 340 Stealth Fuel System(18688)

Description

Considering a switch to EFI or swapping in that late-model motor? What has recently become the hottest trend in hot rodding has been plagued by fuel delivery. The question is always this: what do I do for a tank? Up until now, it’s been one of three options: 1) weld in a sump to your tank, 2) go with a fuel cell ,or 3) pay for a custom tank. Well, not any more. Aeromotive’’s Phantom Fuel System gives you the option to put a high-performance fuel pump inside virtually any fuel tank, including your factory tank. Simply:
1) Cut a hole in you tank.
2) Measure the depth.
3) Cut both you pump hanger bracket and your baffle / basket foam to length.
4)Insert the baffle.
5) Install the retainer ring and gasket.
6) Bolt your pump and hanger down.
That’’s it! Now you have a fuel pump inside your factory tank capable of supporting big horsepower, EFI or Carbureted, AND it’s whisper quiet. No more welding sumps or using up trunk space with fuel cells. No more hot fuel handling issues like vapor-lock and no more fuel slosh. The Phantom system’’s internal baffle / basket controls fuel slosh and keeps the fuel pump submerged in fuel, even at low fuel levels and in aggressive driving. The best part about this whole system is that… it’s completely universal. This system will fit virtually any tank from 6” deep to 11” inch deep, plastic, steel, aluminum, corrugated, or smooth. One system that gives you everything you need to fuel your ride. It’s serious performance and you will never know is there! Patent No. 8,783,287 Features and Specifications:

• 340 Stealth Fuel Pump
• Supports up to – 700 HP EFI – Forced Induction – 850 HP EFI – Naturally Aspirated – 850 HP Carbureted – Forced Induction – 1000 HP Carbureted – Naturally Aspirated
• Black anodized hanger assembly
• (3) ORB-06 Ports – Supply, Return, Vent
• Fuel resistant baffle / basket (Includes: Foam and Bladder)
• Universal high flow pre-pump filter
• Modular design can be cut to height to fit almost any fuel tank
• EFI or Carbureted
• Turbine pump mechanism increases durability.
• Must be used with a return style system
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
• In-tank use only

Additional information

Mounting Configuration: In Tank

Considering a switch to EFI or swapping in that late model motor? What has recently become the hottest trend in hot rodding has been plagued by fuel delivery. The question is always, what do I do for a tank? Up until now, it’s been one of three options. Weld in a sump to your tank, go with a fuel cell or pay for a custom tank. Well, not any more. Aeromotive’s Phantom Fuel System gives you the option to put a high performance fuel pump inside virtually any fuel tank, including your factory tank. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Simply cut a hole in you tank. Measure the depth. Cut you pump hanger bracket to length and your baffle / basket foam. Insert the baffle. Install the retainer ring and gasket. Bolt your pump and hanger down. That’s it. Now you have a fuel pump inside your factory tank capable of supporting big horsepower EFI or Carbureted and its whisper quiet.

No more welding sumps or using up trunk space with fuel cells. No more hot fuel handling issues like vapor-lock and no more fuel slosh. The Phantom system’s internal baffle / basket controls fuel slosh and keeps the fuel pump submerged in fuel, even at low fuel levels and in aggressive driving. The best part about this whole system… its completely universal. This system will fit virtually any tank from 6” deep to 11” inch deep, plastic, steel, aluminum, corrugated or smooth. One system that gives you everything you need to fuel your ride. Its serious performance you will never know is there!

Patent No. 8,783,287

Features and Specifications:

• 340 Stealth Fuel Pump
• Supports up to
  – 700 HP EFI – Forced Induction
  – 850 HP EFI – Naturally Aspirated
  – 850 HP Carbureted – Forced Induction
  – 1000 HP Carbureted – Naturally Aspirated
• Black anodized hanger assembly
• (3) ORB-06 Ports – Supply, Return, Vent
• Fuel resistant baffle / basket (Includes: Foam and Bladder)
• Universal high flow pre-pump filter
• Modular design can be cut to height to fit almost any fuel tank
• EFI or Carbureted
• Turbine pump mechanism increases durability.
• Must be used with a return style system
• In-tank use only

For our Phantom extension kit (p/n 18788), please click .
