Description

These new Phantom EFI Fuel Systems include all main fuel system components required to create a proper return-style EFI fuel system for engines with OEM “return-less” style fuel rails, including the desired Phantom Baffled Fuel Pump Kit with a 340 LPH fuel pump. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.  Each system ships with the a custom black EFI bypass fuel pressure regulator, high-flow billet fuel filter, filter mounting bracket, 3/8? Quick-Connect fuel rail adapter, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge. Ideal for late model engine transplants so hot with Street Rodders around the world.  Suitable for naturally aspirated and blown, EFI engines producing from 300- 700 plus flywheel Horse Power, on the street or at the track.  AN-06 Style fuel hose and hose-ends are required for the installation of a fuel supply and return line, sold separately and not included. This kit contains the following parts: 1ea p/n 18688 Phantom 340 1ea p/n 12321 Filter 10 micron Paper 1ea p/n 12305 Filter Bracket 1ea p/n 13131 Fuel Pressure Regulator 1ea p/n 16307 Fuel Pump Wiring Kit. 1ea p/n 15118 3/8 Quick Connect to AN-08 1ea p/n 15605 AN-08 ORB to AN-06 flare 6 ea p/n 15606 AN-06 ORB to AN-06 flare 2 ea p/n 15609 AN-10 ORB to AN-06 flare 1ea p/n 15633 Gauge, 0-100 psi

Additional information

Mounting Configuration: External

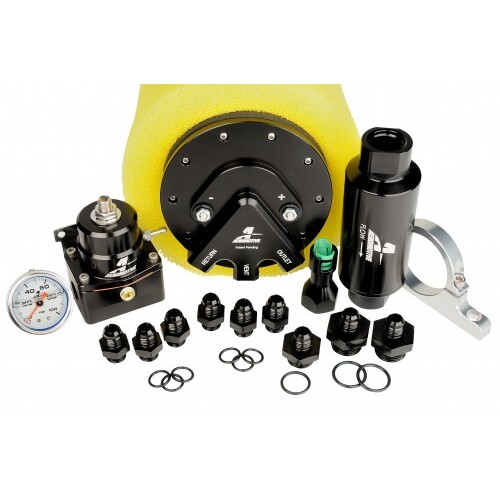

P/N 17166: OEM Returnless Rail – Phantom 340 & Installation Kit

These new Phantom EFI Fuel Systems include all main fuel system components required to create a proper return-style EFI fuel system for engines with OEM “return-less” style fuel rails, including the desired Phantom Baffled Fuel Pump Kit with a 340 LPH fuel pump. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.  Each system ships with the a custom black EFI bypass fuel pressure regulator, high-flow billet fuel filter, filter mounting bracket, 3/8? Quick-Connect fuel rail adapter, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge.

Ideal for late model engine transplants so hot with Street Rodders around the world.  Suitable for naturally aspirated and blown, EFI engines producing from 300- 700 plus flywheel Horse Power, on the street or at the track.  AN-06 Style fuel hose and hose-ends are required for the installation of a fuel supply and return line, sold separately and not included.

This kit contains the following parts:

1ea p/n 18688 Phantom 340
1ea p/n 12321 Filter 10 micron Paper
1ea p/n 12305 Filter Bracket
1ea p/n 13131 Fuel Pressure Regulator
1ea p/n 16307 Fuel Pump Wiring Kit.
1ea p/n 15118 3/8 Quick Connect to AN-08
1ea p/n 15605 AN-08 ORB to AN-06 flare
6 ea p/n 15606 AN-06 ORB to AN-06 flare
2 ea p/n 15609 AN-10 ORB to AN-06 flare
1ea p/n 15633 Gauge, 0-100 psi
