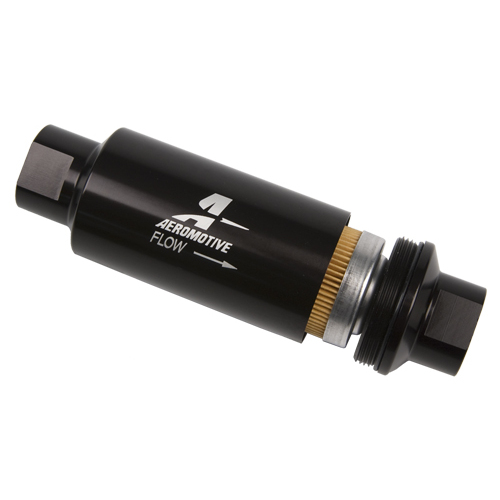

AEROMOTIVE Marine 10m Fabric, Outlet ORB-10 Fuel Filter(12306)
AEROMOTIVE marine product 12306
Description
Description
An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 – 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you’ve come to expect from all Aeromotive components.
- High-flow, 10-micron fabric (fine) replaceable element.
- Flows 2,000 lb/hr with a pressure drop of less than 1 PSI.
- Compact size: 5.5? long x 2? diameter
- ORB-10 ports. Fittings available to adapt these filters to AN-10, -08 and -06 line sizes. (see Fittings & Adapters)
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- All filter assemblies feature an O-ring for positive sealing in high pressure applications.
- CNC-machined from 6061-T6 aircraft aluminum.
- Hard-Coat black anodized finish for a corrosion resistant, show car quality appearance.
10-micron filters may ONLY be used after the fuel pump to protect your injectors or carburetor.
Fabric elements not suitable for use in E85 or alcohol applications.
Additional information
| Weight | 0.73 lbs |
|---|---|
| Dimensions | 5.5 × 5.5 × 2.75 in |
Mounting Configuration: External
| CARB or EFI | Power Adder | FUEL | Horsepower |
|---|
P/N 12306 10-m Fabric Filter Assembly
ORB-10 ports with durable hard-coat black finish
An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 – 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you’ve come to expect from all Aeromotive components.
- High-flow, 10-micron fabric (fine) replaceable element.
- Flows 2,000 lb/hr with a pressure drop of less than 1 PSI.
- Compact size: 5.5? long x 2? diameter
- ORB-10 ports. Fittings available to adapt these filters to AN-10, -08 and -06 line sizes. (see Fittings & Adapters)
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- All filter assemblies feature an O-ring for positive sealing in high pressure applications.
- CNC-machined from 6061-T6 aircraft aluminum.
- Hard-Coat black anodized finish for a corrosion resistant, show car quality appearance.
10-micron filters may ONLY be used after the fuel pump to protect your injectors or carburetor.
Fabric elements not suitable for use in E85 or alcohol applications.
Specifications
| SKU | aeromotive-12306 |
| Brand | AEROMOTIVE |
| Shipping Weight | 10.0000kg |
| Shipping Width | 0.400m |
| Shipping Height | 0.200m |
| Shipping Length | 0.300m |
