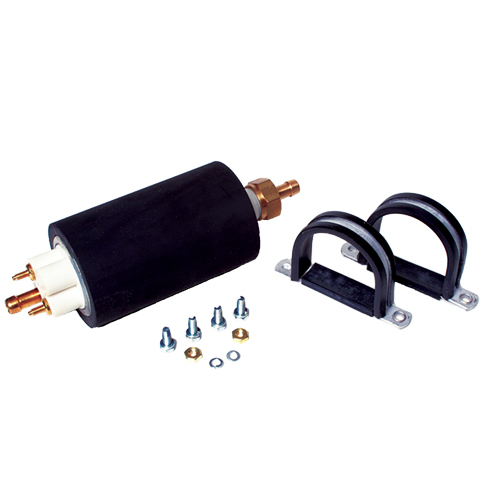

AEROMOTIVE In-Line Electric Fuel Pump(11109)
AEROMOTIVE fuel pump 11109
Description
Description
Basic fuel pump for EFI and carbureted applications. Must be used with a bypass regulator. Supports up to 500 HP naturally aspirated or 375 HP forced induction EFI. Good secondary pump, in ‘series with an in-tank fuel pump and mechanical FMU, increasing combined HP to 500 HP EFI Forced induction.
- Universal inline pump for external mounting.
- Submersible - custom installation required.
- Rated for continuous duty applications.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Flows 325 lbs. per hour @ 13.5 Volts and 45 PSI.
- 5/16′ hose barb inlet and outlet are standard.
- Suitable for use in series with an in-tank pump along with an Aeromotive Digital FMU P/N 16303.
- Can be run stand-alone with AN-08 supply.
- Inlet fitting AN-08 P/N 15114 (sold separately)
- Outlet fitting AN-06 P/N 15635 (sold separately)
Additional information
Weight | 2.16 lbs |
---|---|
Dimensions | 8.5 x— 4.75 x— 4 in |
Mounting Configuration: External
CARB or EFI | Power Adder | FUEL | Horsepower |
---|
P/N 11109 225LPH Universal Inline Fuel Pump
Ideal for use in series with in-tank pump or stand-alone.
Basic fuel pump for EFI and carbureted applications. Must be used with a bypass regulator. Supports up to 500 HP naturally aspirated or 375 HP forced induction EFI. Good secondary pump, in ‘series with an in-tank fuel pump and mechanical FMU, increasing combined HP to 500 HP EFI Forced induction.
- Universal inline pump for external mounting.
- Submersible - custom installation required.
- Rated for continuous duty applications.
- Flows 325 lbs. per hour @ 13.5 Volts and 45 PSI.
- 5/16′ hose barb inlet and outlet are standard.
- Suitable for use in series with an in-tank pump along with an Aeromotive Digital FMU P/N 16303.
- Can be run stand-alone with AN-08 supply.
- Inlet fitting AN-08 (sold separately).
- Outlet fitting AN-06 (sold separately).
Specifications
SKU | aeromotive-11109 |
Brand | AEROMOTIVE |
Shipping Weight | 10.0000kg |
Shipping Width | 0.400m |
Shipping Height | 0.200m |
Shipping Length | 0.300m |
