Description

An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. Aeromotive offers a full line of filter options suitable for 200 - 4,000 plus HP applications.  Specialized filter media for gas, ethanol and methanol fuels available.  Our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish youve come to expect from all Aeromotive components.

High-flow cellulose filter ideal for extended service life in gas or diesel fuel applications using mechanical or electric fuel pumps up to 6-GPM.

When over 6-GPM mechanical or electric pumps are required for ethanol and methanol applications see 10-m Microglass filter Assembly .

• High-flow, 10-micron fabric (cellulose) replaceable element.
• Fabric element for use with gasoline and diesel fuels only.
• Suitable for up to 6-GPM mechanical or electric fuel pumps.
• Flows 3,000 lb/hr with a clean pressure drop of less than 3-PSI.
• AN-16 ORB ports. Fittings available to adapt these filters from AN-16 down to AN-08 line sizes. (see Fittings & Adapters).
• Extreme-Flow filters feature a tough, Hard-Coat Black finish.
• 10″ long x 2-5/8″ diameter.
• Replacement element

Additional information

Mounting Configuration: External

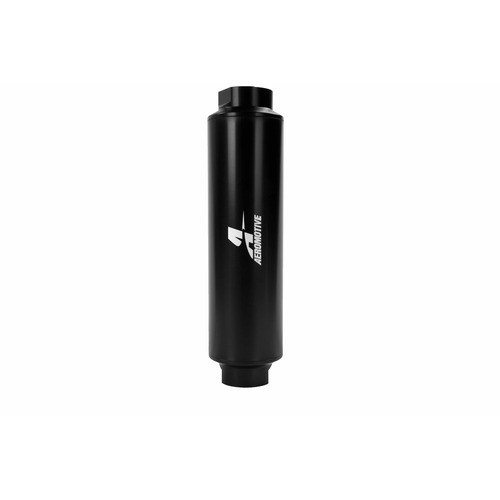

P/N 12361: Extreme Flow 10-m Fabric AN-16 ORB Fuel Filter
Max flow filtration for Brushless Gear and Mechanical Fuel Pumps

High-flow cellulose filter ideal for extended service life in gas or diesel fuel applications using mechanical or electric fuel pumps up to 6-GPM.

When over 6-GPM mechanical or electric pumps are required for ethanol and methanol applications see 10-m Microglass filter Assembly .

• High-flow, 10-micron fabric (cellulose) replaceable element.
• Fabric element for use with gasoline and diesel fuels only.
• Suitable for up to 6-GPM mechanical or electric fuel pumps.
• Flows 3,000 lb/hr with a clean pressure drop of less than 3-PSI.
• AN-16 ORB ports. Fittings available to adapt these filters from AN-16 down to AN-08 line sizes. (see Fittings & Adapters).
• Extreme-Flow filters feature a tough, Hard-Coat Black finish.
• 10″ long x 2-5/8″ diameter.
• Replacement element
