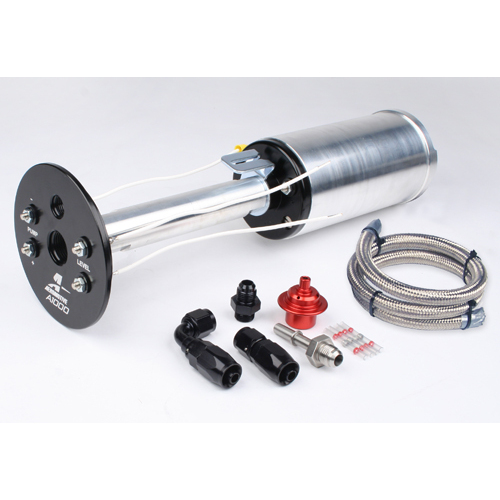

AEROMOTIVE Eliminator Corvette Stealth Kit(18671)

Description

Finally, a solution to your Corvette’s fuel system needs. No more drilling your fuel tanks, no more risking pump failure in a 1, 2, or 3 pump set ups, no more surge tanks, no more mess. Aeromotive has engineered a patent-pending, complete drop-in fuel system available for C6 and late C5 Corvettes. The system provides a single Eliminator Fuel Pump capable of supporting big HP. The best part, it’s a complete drop-in assembly into your factory tank that still incorporates the factory jet siphon system. Now you can plumb a true return-style system into your Corvette without the worry of the siphon system and while using the factory fuel tank. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. For details on this system and the installation of the 18671 into your Corvette, download the installation instruction below.

• Fits 2003 1/2 and later Corvettes (Late C5 and C6)
• Supports up to 1900 HP ‘ naturally aspirated
• Supports up to 1400 HP ‘ forced air induction
• ORB-10 outlet port
• ORB-06 return port
• Incorporates factory jet siphon system and sending unit
• Includes an integrated 100-Micron Stainless Steel pre-pump filter
• Utilizes the factory tank, o-ring, lock ring and mounting location
• Includes all necessary fittings and hardware to plumb the pump into your tank. – Remaining system plumbing not included. For recommendations on line sizes, filters, regulators and fuel rails, call our tech lines at: (913) 647-7300. Or follow the guidelines for the Eliminator Fuel Pump. For Eliminator (P/N 11104) specifications, Additional photos and videos can be found

Additional information

Mounting Configuration: In Tank

Finally, a solution to your Corvette’s fuel system needs. No more drilling your fuel tanks, no more risking pump failure in a 1, 2, or 3 pump set ups, no more surge tanks, no more mess. Aeromotive has engineered a patent-pending, complete drop-in fuel system available for C6 and late C5 Corvettes. The system provides a single Eliminator Fuel Pump capable of supporting big HP. The best part, it’s a complete drop-in assembly into your factory tank that still incorporates the factory jet siphon system. Now you can plumb a true return-style system into your Corvette without the worry of the siphon system and while using the factory fuel tank. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. For details on this system and the installation of the 18671 into your Corvette, download the installation instruction below.

• Fits 2003 1/2 and later Corvettes (Late C5 and C6)
• Supports up to 1900 HP ‘ naturally aspirated
• Supports up to 1400 HP ‘ forced air induction
• ORB-10 outlet port
• ORB-06 return port
• Incorporates factory jet siphon system and sending unit
• Includes an integrated 100-Micron Stainless Steel pre-pump filter
• Utilizes the factory tank, o-ring, lock ring and mounting location
• Includes all necessary fittings and hardware to plumb the pump into your tank.
  – Remaining system plumbing not included. For recommendations on line sizes, filters, regulators and fuel rails, call our tech lines at: (913) 647-7300. Or follow the guidelines for the Eliminator Fuel Pump.For Eliminator (P/N 11104) specifications, Additional photos and videos can be found
