SKU: aeromotive-14147

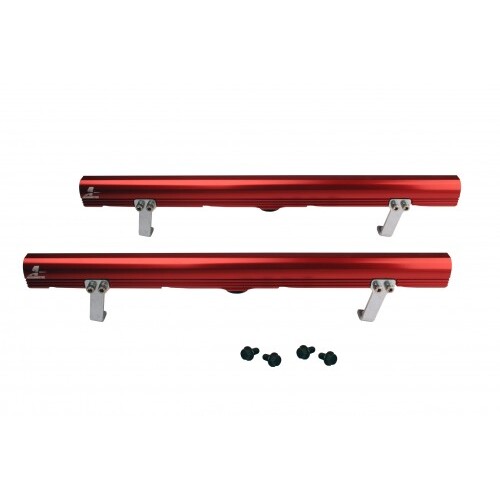

AEROMOTIVE Edelbrock LS1 Intake Fuel Rail Kit(14147)
AEROMOTIVE fuel rail kits 14147
Description
Description
Aeromotive High Flow, Billet Fuel Rails combine 3,000 HP flow capabilities with “bolt-on” ease of installation.
- Fits the Edelbrock® LS1 Intake – Rails Only
- ORB-08 Ports with compact connections and positive, leak-free sealing.
- Full 5/8” ID through bore, capable of supporting up to 3,000 HP.
- Fully compatible with -10 AN line if combined with custom ORB-08/AN-10 adapter P/N 15641.
- Full size ports at each end for optimal injector supply and minimal hydraulic fluctuation.
- Additional inlet/outlet ports are provided where required for plumbing convenience.
- CNC-machined, billet aluminum construction for unequaled fit and finish.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Steel mounting brackets, custom engineered for each application, combining a solid, durable mounting platform with correct fit and “bolt-on” ease of installation.
- Red, Type II bright dip anodized finish that looks great and protects against corrosion.
Additional information
Weight | 2.33 lbs |
---|---|
Dimensions | 17.75 × 6.75 × 1.5 in |
Mounting Configuration: External
CARB or EFI | Power Adder | FUEL | Horsepower |
---|
Aeromotive High Flow, Billet Fuel Rails combine 3,000 HP flow capabilities with “bolt-on” ease of installation.
- Fits the Edelbrock® LS1 Intake – Rails Only
- ORB-08 Ports with compact connections and positive, leak-free sealing.
- Full 5/8” ID through bore, capable of supporting up to 3,000 HP.
- Fully compatible with -10 AN line if combined with custom ORB-08/AN-10 adapter P/N 15641.
- Full size ports at each end for optimal injector supply and minimal hydraulic fluctuation.
- Additional inlet/outlet ports are provided where required for plumbing convenience.
- CNC-machined, billet aluminum construction for unequaled fit and finish.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Steel mounting brackets, custom engineered for each application, combining a solid, durable mounting platform with correct fit and “bolt-on” ease of installation.
- Red, Type II bright dip anodized finish that looks great and protects against corrosion.
Specifications
SKU | aeromotive-14147 |
Brand | AEROMOTIVE |
Shipping Weight | 10.0000kg |
Shipping Width | 0.400m |
Shipping Height | 0.200m |
Shipping Length | 0.300m |
