AEROMOTIVE Dual Rail EFI Return Kit – Phantom 340(17164)

Description

These new Phantom EFI Fuel Systems include all main fuel system components required to create a proper return-style EFI fuel system for engines with dual billet fuel rails, including the desired Phantom Baffled Fuel Pump Kit with a 340 LPH fuel pump. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.  Each system ships with the a custom black EFI bypass fuel pressure regulator, high-flow billet fuel filter, filter mounting bracket, hi-flow Y-block, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge. Ideal for naturally aspirated and blown, EFI engines producing from 300 – 700 plus flywheel Horse Power, on the street or at the track.  AN-06 Style fuel hose and hose-ends are required for the installation of a fuel supply and return line, sold separately and not included. This kit contains the following parts: 1ea p/n 18688 Phantom 340 1ea p/n 12321 Filter Assembly, 10-micron 1ea p/n 12305 Filter Bracket 1ea p/n 13131 Fuel Pressure Regulator 1ea p/n 16307 Fuel Pump Wiring Kit. 6 ea p/n 15606 AN-06 ORB to AN-06 flare 2 ea p/n 15609 AN-10 ORB to AN-06 flare 1ea p/n 15633 Gauge, 0-100 psi 1ea p/n 15672 Y-Block, AN-06

Additional information

Mounting Configuration: External

P/N 17164: Dual Rail EFI Return Kit-Phantom 340

These new Phantom EFI Fuel Systems include all main fuel system components required to create a proper return-style EFI fuel system for engines with dual billet fuel rails, including the desired Phantom Baffled Fuel Pump Kit with a 340 LPH fuel pump. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.  Each system ships with the a custom black EFI bypass fuel pressure regulator, high-flow billet fuel filter, filter mounting bracket, hi-flow Y-block, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge.

Ideal for naturally aspirated and blown, EFI engines producing from 300 – 700 plus flywheel Horse Power, on the street or at the track.  AN-06 Style fuel hose and hose-ends are required for the installation of a fuel supply and return line, sold separately and not included.

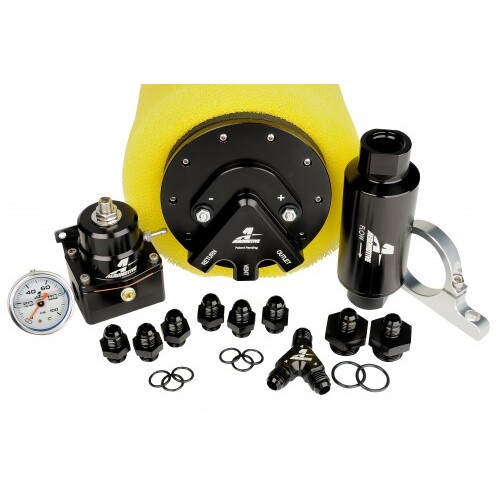

This kit contains the following parts:

1ea p/n 18688 Phantom 340
1ea p/n 12321 Filter Assembly, 10-micron
1ea p/n 12305 Filter Bracket
1ea p/n 13131 Fuel Pressure Regulator
1ea p/n 16307 Fuel Pump Wiring Kit.
6 ea p/n 15606 AN-06 ORB to AN-06 flare
2 ea p/n 15609 AN-10 ORB to AN-06 flare
1ea p/n 15633 Gauge, 0-100 psi
1ea p/n 15672 Y-Block, AN-06
