AEROMOTIVE Double Adj. Bypass Fuel Log Kit (Demon style)(17251)

Description

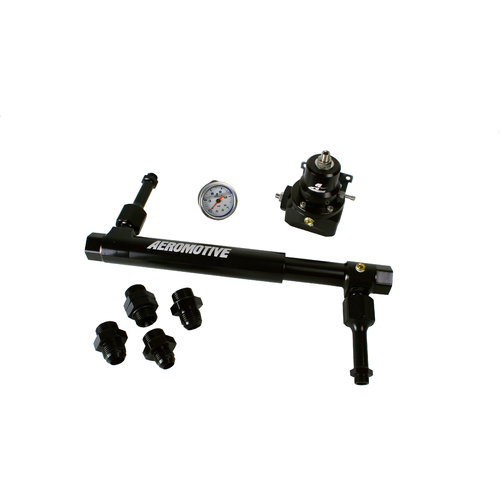

Double Adjustable Bypass Fuel Log Kit (P/N 17251). Fits Demon style carburetors. Includes 14202 Dual Action Adjustable Fuel Log, 13214 Double Adjustable Regulator and 15632 Fuel Pressure Gauge For Demon Style Float Bowls (9/16 x 24 Thread) The new Aeromotive Fuel Log incorporates features never before available. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. Each carburetor inlet features a ball and socket assembly that swivels +/-20 degrees, allowing additional clearance for throttle stops, nit rous plates and other accessories; then locks in place at the desired position. The telescoping log will fit 4150 or 4500 Dominator (P/N 14201) and Demon (P/N 14202) carburetors. The ORB-10 inlet and outlet ports will feed the hungriest big blocks, and adapt easily to Aeromotive P/N 13212 (A2000 Bypass – gasoline) or P/N 13214 (Double Adjustable Bypass – alcohol) fuel pressure regulators.

• Carburetor inlets swivel + or – 2 0º in all directions.
• Telescoping center line 7 .700” to 13.450”.
• ORB-10 inlet and outlet ports.
• (2) 1/8” NPT ports for gauges or pressure transducers.
• 1.056 / .806” ID bore.
• Type II bright dip black anodized finish.

Additional information

Mounting Configuration: External

P/N 17251: Double Adj. Bypass Fuel Log Kit (Demon Style)

Double Adjustable Bypass Fuel Log Kit (P/N 17251). Fits Demon style carburetors.

Includes 14202 Dual Action Adjustable Fuel Log, 13214 Double Adjustable Regulator and 15632 Fuel Pressure Gauge

For Demon Style Float Bowls (9/16 x 24 Thread)

The new Aeromotive Fuel Log incorporates features never before available. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. Each carburetor inlet features a ball and socket assembly that swivels +/-20 degrees, allowing additional clearance for throttle stops, nit rous plates and other accessories; then locks in place at the desired position. The telescoping log will fit 4150 or 4500 Dominator (P/N 14201) and Demon (P/N 14202) carburetors. The ORB-10 inlet and outlet ports will feed the hungriest big blocks, and adapt easily to Aeromotive P/N 13212 (A2000 Bypass – gasoline) or P/N 13214 (Double Adjustable Bypass – alcohol) fuel pressure regulators.

• Carburetor inlets swivel + or – 2 0º in all directions.
• Telescoping center line 7 .700” to 13.450”.
• ORB-10 inlet and outlet ports.
• (2) 1/8” NPT ports for gauges or pressure transducers.
• 1.056 / .806” ID bore.
• Type II bright dip black anodized finish.
