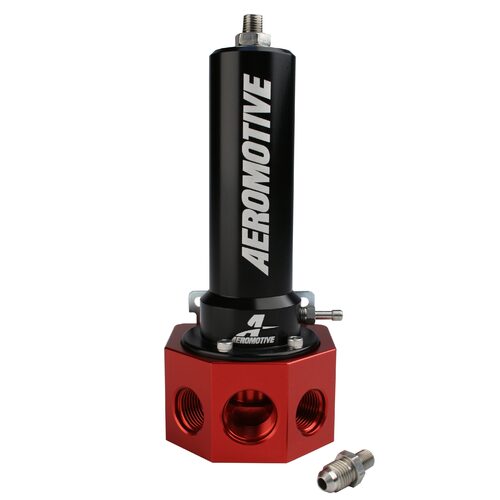

AEROMOTIVE Belt Drive Pump EFI Regulator(13113)
AEROMOTIVE fuel pressure regulator 13113
Description
Description
Ultra-High Flow EFI Regulator, adjustable from 40-100 PSI. Engineered for our Belt-Drive and Hex-Drive Fuel Pumps, the Belt Drive EFI Regulator is suitable for engines making up to 4,000 HP on gasoline and is compatible with gasoline and methanol.
- Perfect for any mechanically driven EFI fuel pump developing over 200 GPH at EFI pressure.
- Base pressure adjustable from 40-100 PSI.
- References Vacuum/Boost on a 1:1 ratio. Includes two boost line adapters, one barbed for rubber hose, the other for AN-04 braided line. (Prevents blow-off in high boost applications)
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Ports available for nitrous fuel supply, pressure gauges and transducers.
- (4) ORB-08 inlet ports, (1) ORB-10 inlet port and (1) ORB-10 return port.
Additional information
Weight | 1.98 lbs |
---|---|
Dimensions | 8.5 × 4.75 × 4 in |
Mounting Configuration: External
CARB or EFI | Power Adder | FUEL | Horsepower |
---|
Ultra-High Flow EFI Regulator, adjustable from 40-100 PSI. Engineered for our Belt-Drive and Hex-Drive Fuel Pumps, the Belt Drive EFI Regulator is suitable for engines making up to 4,000 HP on gasoline and is compatible with gasoline and methanol.
- Perfect for any mechanically driven EFI fuel pump developing over 200 GPH at EFI pressure.
- Base pressure adjustable from 40-100 PSI.
- References Vacuum/Boost on a 1:1 ratio. Includes two boost line adapters, one barbed for rubber hose, the other for AN-04 braided line. (Prevents blow-off in high boost applications)
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Ports available for nitrous fuel supply, pressure gauges and transducers.
- (4) ORB-08 inlet ports, (1) ORB-10 inlet port and (1) ORB-10 return port.
Specifications
SKU | aeromotive-13113 |
Brand | AEROMOTIVE |
Shipping Weight | 10.0000kg |
Shipping Width | 0.400m |
Shipping Height | 0.200m |
Shipping Length | 0.300m |
