Description

High Flow Outlet (Pressure) Port Adapter for use on the 12-Series fuel pump outlet port.

Not for use on the suction side of any 12-Series Mechanical Pump, P/N’s 11115 or 11117.

For the 12-Series pump inlet adapters use nothing smaller than AN-16 or 1-1/4? Bib/Barb.

AN-16 inlet adapter P/N 11747

1-1/4? Bib/Barb inlet adapter P/N 11748

Additional information

Mounting Configuration: External

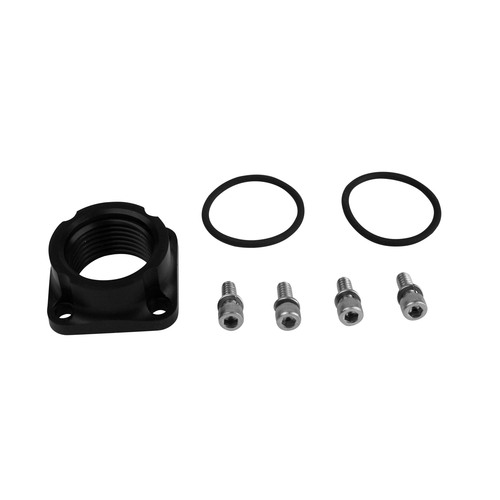

P/N 11746 ORB-12 High Flow Outlet Port Adapter
Designed for the outlet of Aeromotive 12-Series Pumps

• Bolt-on outlet port fitting ORB-12
• Accepts ORB-12 to AN-12 port fitting .
• Accepts ORB-12 to AN-10 port fitting .
• Do NOT use as inlet adapter for 12-Series Pumps.

Suitable inlet adapters for the 12-Series pumps include either AN-16 or 1 – 1/4? Bib/Barb style connections.

AN-16 male flare inlet adapter P/N 11747
1 – 1/4? bib/barb inlet adapter P/N 11748
