SKU: aeromotive-18667

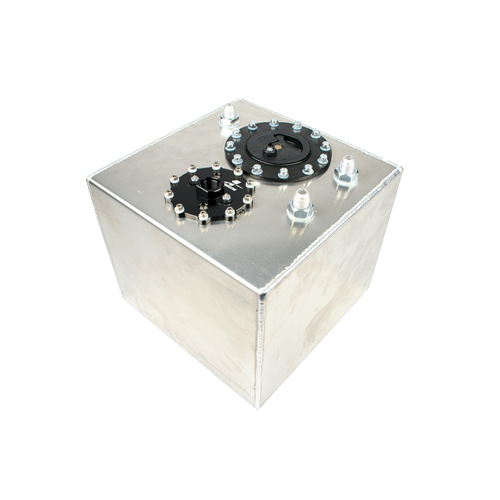

AEROMOTIVE 6 Gal. Eliminator Stealth Fuel Cell(18667)

AEROMOTIVE stealth fuel system 18667

$2,395.05


In Stock


Calculate Shipping



Australia wide rate - $55.00

Description

Description

Originally developed for the 2010 Ford Cobra Jet Mustangs, these 6 gallon aluminum fuel cells feature the same advantages of the 15 and 20 gallon versions, but without the street-style sending unit. Plus, the compact 6 gallon size, makes it perfect for drag racing and other like applications where large fuel capacity is not an issue. This is a truly universal aluminum fuel cell featuring an Aeromotive high performance fuel pump and pre-pump filter built right into the fuel cell. These Stealth Fuel Cells feature an innovative integral baffling system to maintain a column of fuel at the pickup point, eliminating fuel slosh issues making these cells perfect for any application from autocross, to road racing to drifting and off-road. Simply strap the cell in, hook up your feed and return lines and your done. Now you have a complete “in-tank” fuel system without the need for expensive custom tanks or the hassle of welding sump boxes or modifying inadequate pick up tubes. With either the A1000 or the Eliminator Fuel Pump, the Stealth Fuel Cells are truly universal, preforming perfectly in any application. By matching the right regulator to your application, this system will be the last fuel system you will ever need to buy. Need help choosing the right regulator, call our tech lines at (913) 647-7300 Option 3. Fuel Injected Engines: up to 1900 HP – naturally aspirated up to 1400 HP – forced air induction Carbureted Engines: up to 2300 HP – naturally aspirated up to 1700 HP – forced air induction Part Number 18667 Features:

  • Eliminator Fuel Pump (internal) – P/N 11104
  • 100 Micron Stainless Steel Fuel Filter
  • 6.2 Gallon Capacity
  • AN-08 Return Line Provision
  • ORB-10 Outlet Port
  • (2) AN-08 Vents with Rollover Valves
  • Standard 12-Bolt Flush Mount Lid Assembly
  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
  • Natural Aluminum Finish Dimensions: 12”L x 12”W x 10”H

Additional information

Weight 19 lbs
Dimensions 21 × 13 × 14 in

Mounting Configuration: In Tank

CARB or EFI Power Adder FUEL Horsepower
EFI Naturally Aspirated Gas 1900
EFI Naturally Aspirated E85 1330
CARB Naturally Aspirated Gas 1300
CARB Naturally Aspirated E85 1610
EFI Forced Induction Gas 1400
EFI Forced Induction E85 980
CARB Forced Induction Gas 1700
CARB Forced Induction E85 1190

Originally developed for the 2010 Ford Cobra Jet Mustangs, these 6 gallon aluminum fuel cells feature the same advantages of the 15 and 20 gallon versions, but without the street-style sending unit. Plus, the compact 6 gallon size, makes it perfect for drag racing and other like applications where large fuel capacity is not an issue. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

This is a truly universal aluminum fuel cell featuring an Aeromotive high performance fuel pump and pre-pump filter built right into the fuel cell. These Stealth Fuel Cells feature an innovative integral baffling system to maintain a column of fuel at the pickup point, eliminating fuel slosh issues making these cells perfect for any application from autocross, to road racing to drifting and off-road.

Simply strap the cell in, hook up your feed and return lines and your done. Now you have a complete “in-tank” fuel system without the need for expensive custom tanks or the hassle of welding sump boxes or modifying inadequate pick up tubes.

With either the A1000 or the Eliminator Fuel Pump, the Stealth Fuel Cells are truly universal, preforming perfectly in any application. By matching the right regulator to your application, this system will be the last fuel system you will ever need to buy.

Need help choosing the right regulator, call our tech lines at (913) 647-7300 Option 3.

Fuel Injected Engines:
up to 1900 HP – naturally aspirated
up to 1400 HP – forced air induction

Carbureted Engines:
up to 2300 HP – naturally aspirated
up to 1700 HP – forced air induction

Part Number 18667 Features:

  • Eliminator Fuel Pump (internal) – P/N 11104
  • 100 Micron Stainless Steel Fuel Filter
  • 6.2 Gallon Capacity
  • AN-08 Return Line Provision
  • ORB-10 Outlet Port
  • (2) AN-08 Vents with Rollover Valves
  • Standard 12-Bolt Flush Mount Lid Assembly
  • Natural Aluminum FinishDimensions:
    12”L x 12”W x 10”H

Specifications

SKU aeromotive-18667
Brand AEROMOTIVE
Shipping Weight 35.0000kg
Shipping Width 0.400m
Shipping Height 0.200m
Shipping Length 0.300m
