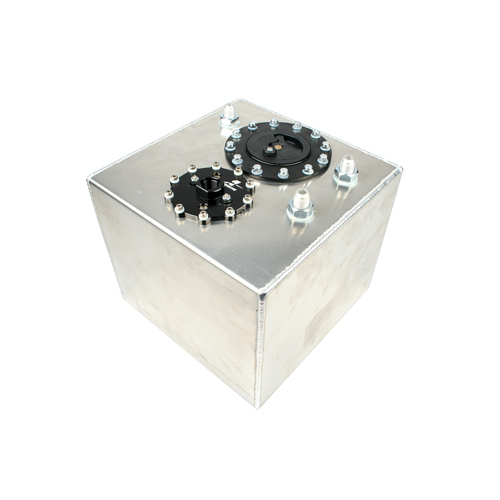

AEROMOTIVE 6 Gal A1000 Stealth Fuel Cell(18666)

Description

Originally developed for the 2010 Ford Cobra Jet Mustangs, these 6 gallon aluminum fuel cells feature the same advantages of the 15 and 20 gallon versions, but without the street-style sending unit. Plus, the compact 6 gallon size, makes it perfect for drag racing and other like applications where large fuel capacity is not an issue. This is a truly universal aluminum fuel cell featuring an Aeromotive high performance fuel pump and pre-pump filter built right into the fuel cell. These Stealth Fuel Cells feature an innovative integral baffling system to maintain a column of fuel at the pickup point, eliminating fuel slosh issues making these cells perfect for any application from autocross, to road racing to drifting and off-road. Simply strap the cell in, hook up your feed and return lines and your done. Now you have a complete “in-tank” fuel system without the need for expensive custom tanks or the hassle of welding sump boxes or modifying inadequate pick up tubes. With either the A1000 or the Eliminator Fuel Pump, the Stealth Fuel Cells are truly universal, preforming perfectly in any application. By matching the right regulator to your application, this system will be the last fuel system you will ever need to buy. Need help choosing the right regulator, call our tech lines at (913) 647-7300 Option 3. Part Number 18666 Features:

• A1000 Fuel Pump (internal) – P/N 11101
• 100 Micron Stainless Steel Fuel Filter
• 6.2 Gallon Capacity
• AN-08 Return Line Provision
• ORB-10 Outlet Port
• (2) AN-08 Vents with Rollover Valves
• Standard 12-Bolt Flush Mount Lid Assembly
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
• Natural Aluminum Finish Fuel Injected Engines: up to 1300 HP – naturally aspirated up to 1000 HP – forced air induction Carbureted Engines: up to 1500 HP – naturally aspirated up to 1200 HP – forced air induction Dimensions: 12”L x 12”W x 10”H View Installation Instructions

Additional information

Mounting Configuration: In Tank

Originally developed for the 2010 Ford Cobra Jet Mustangs, these 6 gallon aluminum fuel cells feature the same advantages of the 15 and 20 gallon versions, but without the street-style sending unit. Plus, the compact 6 gallon size, makes it perfect for drag racing and other like applications where large fuel capacity is not an issue. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

This is a truly universal aluminum fuel cell featuring an Aeromotive high performance fuel pump and pre-pump filter built right into the fuel cell. These Stealth Fuel Cells feature an innovative integral baffling system to maintain a column of fuel at the pickup point, eliminating fuel slosh issues making these cells perfect for any application from autocross, to road racing to drifting and off-road.

Simply strap the cell in, hook up your feed and return lines and your done. Now you have a complete “in-tank” fuel system without the need for expensive custom tanks or the hassle of welding sump boxes or modifying inadequate pick up tubes.

With either the A1000 or the Eliminator Fuel Pump, the Stealth Fuel Cells are truly universal, preforming perfectly in any application. By matching the right regulator to your application, this system will be the last fuel system you will ever need to buy.

Need help choosing the right regulator, call our tech lines at (913) 647-7300 Option 3.

Part Number 18666 Features:

• A1000 Fuel Pump (internal) – P/N 11101
• 100 Micron Stainless Steel Fuel Filter
• 6.2 Gallon Capacity
• AN-08 Return Line Provision
• ORB-10 Outlet Port
• (2) AN-08 Vents with Rollover Valves
• Standard 12-Bolt Flush Mount Lid Assembly
• Natural Aluminum FinishFuel Injected Engines:
  up to 1300 HP – naturally aspirated
  up to 1000 HP – forced air inductionCarbureted Engines:
  up to 1500 HP – naturally aspirated
  up to 1200 HP – forced air inductionDimensions:
  12”L x 12”W x 10”HView Installation Instructions
