SKU: aeromotive-18665

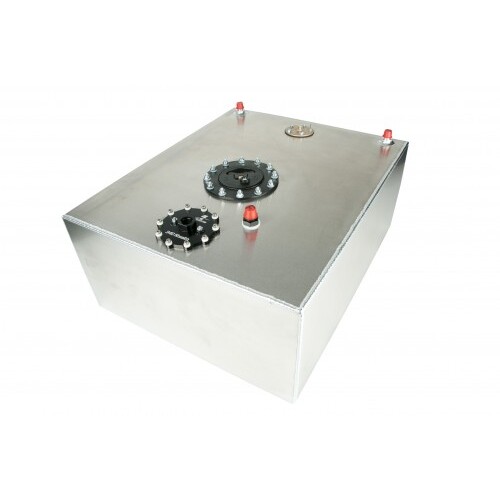

AEROMOTIVE 340 Stealth Fuel Cell, 20 Gallon(18665)

AEROMOTIVE stealth fuel system 18665

$1,757.90

or 4 payments of $439.48 with Info



In Stock


Calculate Shipping



Australia wide rate - $45.00

Description

Description

Originally developed for the 2010 Ford Cobra Jet Mustangs, these 6 gallon aluminum fuel cells feature the same advantages of the 15 and 20 gallon versions, but without the street-style sending unit. Plus, the compact 6 gallon size, makes it perfect for drag racing and other like applications where large fuel capacity is not an issue. This is a truly universal aluminum fuel cell featuring an Aeromotive high performance fuel pump and pre-pump filter built right into the fuel cell. These Stealth Fuel Cells feature an innovative integral baffling system to maintain a column of fuel at the pickup point, eliminating fuel slosh issues making these cells perfect for any application from autocross, to road racing to drifting and off-road. Simply strap the cell in, hook up your feed and return lines and your done. Now you have a complete “in-tank” fuel system without the need for expensive custom tanks or the hassle of welding sump boxes or modifying inadequate pick up tubes. Need help choosing the right regulator, call our tech lines at (913) 647-7300 Option 3.

Part Number 18665 Features:

  • 340 Fuel Pump (internal) – P/N 11140
  • 20 Gallon Capacity
  • ORB-08 Outlet Port
  • AN-08 Return Line Provision
  • (2) AN-08 Vents with Rollover Valves
  • Standard 12-Bolt Flush Mount Lid Assembly
  • Integrated 0-90-ohm fuel level sending unit
  • Natural Aluminum Finish
  • Supports up to EFI – 700hp Forced Induction EFI – 850hp Naturally Aspirated Carbureted – 850hp Forced Induction Carbureted – 1000hp Naturally Aspirated Dimensions: 24”L x 20”W x 10”H
  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Additional information

Weight 27 lbs
Dimensions 28 × 22 × 14 in

Mounting Configuration: In Tank

CARB or EFI Power Adder FUEL Horsepower
EFI Naturally Aspirated Gas 850
EFI Naturally Aspirated E85 595
CARB Naturally Aspirated Gas 1000
CARB Naturally Aspirated E85 700
EFI Forced Induction Gas 700
EFI Forced Induction E85 490
CARB Forced Induction Gas 850
CARB Forced Induction E85 595

Originally developed for the 2010 Ford Cobra Jet Mustangs, these 6 gallon aluminum fuel cells feature the same advantages of the 15 and 20 gallon versions, but without the street-style sending unit. Plus, the compact 6 gallon size, makes it perfect for drag racing and other like applications where large fuel capacity is not an issue. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

This is a truly universal aluminum fuel cell featuring an Aeromotive high performance fuel pump and pre-pump filter built right into the fuel cell. These Stealth Fuel Cells feature an innovative integral baffling system to maintain a column of fuel at the pickup point, eliminating fuel slosh issues making these cells perfect for any application from autocross, to road racing to drifting and off-road.

Simply strap the cell in, hook up your feed and return lines and your done. Now you have a complete “in-tank” fuel system without the need for expensive custom tanks or the hassle of welding sump boxes or modifying inadequate pick up tubes.

Need help choosing the right regulator, call our tech lines at (913) 647-7300 Option 3.

Part Number 18665 Features:

  • 340 Fuel Pump (internal) – P/N 11140
  • 20 Gallon Capacity
  • ORB-08 Outlet Port
  • AN-08 Return Line Provision
  • (2) AN-08 Vents with Rollover Valves
  • Standard 12-Bolt Flush Mount Lid Assembly
  • Integrated 0-90-ohm fuel level sending unit
  • Natural Aluminum Finish
  • Supports up to
    EFI – 700hp Forced Induction
    EFI – 850hp Naturally Aspirated
    Carbureted – 850hp Forced Induction
    Carbureted – 1000hp Naturally Aspirated
  • Dimensions:
    24”L x 20”W x 10”H

Specifications

SKU aeromotive-18665
Brand AEROMOTIVE
Shipping Weight 25.0000kg
Shipping Width 0.400m
Shipping Height 0.200m
Shipping Length 0.300m
