Description

The Aeromotive diesel lift pump was developed to solve some key issues in the diesel lift pump market. Aeromotive opted for a flow-thru design to solve the shaft seal failure, which means there is no shaft seal to fail or leak. Specific to the Duramax platform is a “fail safe” valve. In the event of failure or a no-run condition, the valve will open and allow fuel to bypass the pump. This allows the vehicle to continue to run and get you to your destination, eliminating tow bills. With a brushless motor design, Aeromotive has increased the performance and longevity you would expect from a diesel lift pump. A single filter model simplifies the design and reduces maintenance cost. Our diesel pump includes the Caterpillar 1R-0750 2-micron filter to catch the smallest particulates. With a standard 1”-14 filter head thread, the end user can use their filter of choice. Features * Unique draw-through technology * 100 micron in-tank filter * 1 in.-14 fuel filter thread, which allows the use of other common filter brands * Stainless steel filter stud * Flow-through design eliminates the failure and leaking of shaft seals * Self-priming, no need to pre-fill the filter during install or filter swap * 130 gph @ 10 psi * OEM-style return; no need to modify the filler neck. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Installation Instructions:

Additional information

Mounting Configuration: External

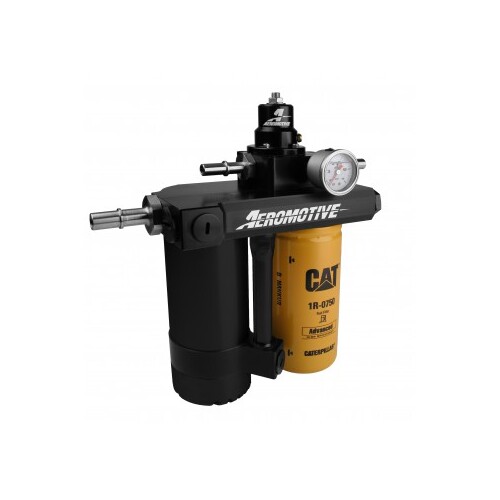

P/N 11802: 130GPH Diesel Lift Pump

The Aeromotive diesel lift pump was developed to solve some key issues in the diesel lift pump market. Aeromotive opted for a flow-thru design to solve the shaft seal failure, which means there is no shaft seal to fail or leak. Specific to the Duramax platform is a “fail safe” valve. In the event of failure or a no-run condition, the valve will open and allow fuel to bypass the pump. This allows the vehicle to continue to run and get you to your destination, eliminating tow bills. With a brushless motor design, Aeromotive has increased the performance and longevity you would expect from a diesel lift pump. A single filter model simplifies the design and reduces maintenance cost. Our diesel pump includes the Caterpillar 1R-0750 2-micron filter to catch the smallest particulates. With a standard 1”-14 filter head thread, the end user can use their filter of choice. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Features
* Unique draw-through technology
* 100 micron in-tank filter
* 1 in.-14 fuel filter thread, which allows the use of other common filter brands
* Stainless steel filter stud
* Flow-through design eliminates the failure and leaking of shaft seals
* Self-priming, no need to pre-fill the filter during install or filter swap
* 130 gph @ 10 psi
* OEM-style return; no need to modify the filler neck

Fittings and Gauge Sold Separately

Installation Instructions:
