SKU: aeromotive-12650

AEROMOTIVE 10-M Microglass Element: ORB-10 Filter Housings(12650)

AEROMOTIVE fuel filter 12650

$89.45

or 4 payments of $22.36 with Info



In Stock


Calculate Shipping



Australia wide rate - $30.00 (ETA: 3 days)

Description

Description

  • Recommended for applications burning pump gas, racing gas, diesel fuel, jet fuel, av-gas, etc.
  • Approved for use in alcohol fuels including ethanol and methanol.
  • Over 60-sq. inches of element surface area supports high flow while providing good service life.
  • Flow capacity of up to 250 GPH (4.17 GPM) with less than 1-PSI pressure drop.
  • Supports up to 2,000 Flywheel HP, Forced Induction, on gasoline.
  • Supports up to 1,400 Flywheel HP Forced Induction on E85.
  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
  • Ideal for gasoline and ethanol burning EFI engines with small to medium Aeromotive fuel pumps, from the Phantom 200 through the Eliminator pump.
  • Popular for demanding gasoline and ethanol/methanol, carbureted engine applications using Aeromotive HO-Series, SS-Series and A2000 fuel pumps.

If you wish to change the filter in your housing from a P/N 12650 10-micron to an element with a different micron rating, you may choose one of the following options:

  •   100-micron Stainless Steel Mesh
  •     40-micron Stainless Steel Mesh

Additional information

Weight 0.1 lbs
Dimensions 9.13 x— 3.5 x— 2 in

Mounting Configuration: External

CARB or EFI Power Adder FUEL Horsepower

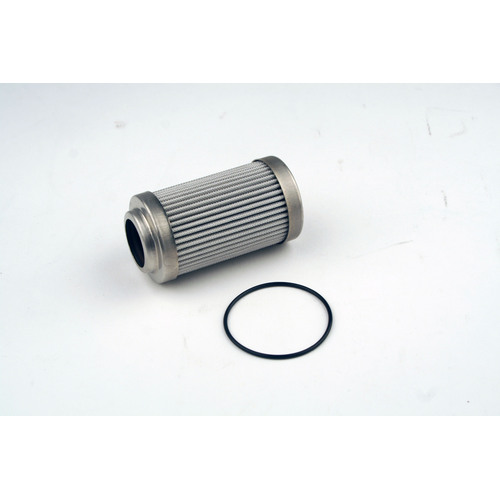

P/N 12650 10-M Micro-glass Replacement Element
Service element for Aeromotive Billet, in-line filters
Fits all 2″ OD x 5-1/2″ long ORB-10 filter housings.
Includes new housing o-ring to reseal the filter assembly.

Suitable for use on the pressure side of a fuel pump only, with gasoline, diesel, ethanol and methanol fuels.

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Direct Replacement Filter Element For Filter P/Ns:

,   ,   ,   ,   ,

Recommended for use with alcohol based fuels including ethanol and methanol.

For comparable filter element suitable for gasoline only based fuels see

See the Filter Chart in the image gallery to the left, and the Filter Dimensional Drawing, if you need further help identifying what filter you have and which element will be a direct replacement.

Specifications

SKU aeromotive-12650
Brand AEROMOTIVE
Shipping Weight 10.0000kg
Shipping Width 0.400m
Shipping Height 0.200m
Shipping Length 0.300m
