Description

This kit is designed to replace an existing aftermarket diesel lift pump equipped with 1/2in lines Includes: 1 ea Fuel Pump Assembly (130gph) 1 ea ½” Suction Hose Assembly 1 ea Frame Bracket 1 1 ea Frame Bracket 2 2 ea 2” Bracket Spacers 3 ea 3/8-16 x 4” Hex Head Bolt 2 ea 3/8-16 x 3” Tapered Socket Cap Screw 3 ea Zinc Plated Lock Washer 1 ea Pump Power Harness 4 ea P/N 15129 AN10 to ½” J2044 Quick Connect 1 ea P/N 15131 AN12 to ½” J2044 Quick Connect 1 ea 15632 0-15psi, 1/8” npt, Fuel Pressure Gauge 3 ea 3/8-16 Zinc Plated Jam nut 4 ea AN-10 o-ring 1 ea AN-12 o-ring 1 ea P/N 12324 100 micron pre-filter. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Installation Instruction:

Additional information

Mounting Configuration: External

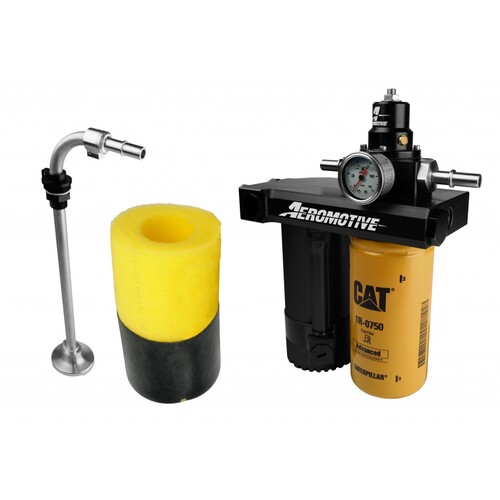

P/N 11803: 01-10 Duramax Diesel Retrofit Kit

This kit is designed to replace an existing aftermarket diesel lift pump equipped with 1/2in lines

Includes:
1 ea Fuel Pump Assembly (130gph)
1 ea ½” Suction Hose Assembly
1 ea Frame Bracket 1
1 ea Frame Bracket 2
2 ea 2” Bracket Spacers
3 ea 3/8-16 x 4” Hex Head Bolt
2 ea 3/8-16 x 3” Tapered Socket Cap Screw
3 ea Zinc Plated Lock Washer
1 ea Pump Power Harness
4 ea P/N 15129 AN10 to ½” J2044 Quick Connect
1 ea P/N 15131 AN12 to ½” J2044 Quick Connect
1 ea 15632 0-15psi, 1/8” npt, Fuel Pressure Gauge
3 ea 3/8-16 Zinc Plated Jam nut
4 ea AN-10 o-ring
1 ea AN-12 o-ring
1 ea P/N 12324 100 micron pre-filter

Installation Instruction:
