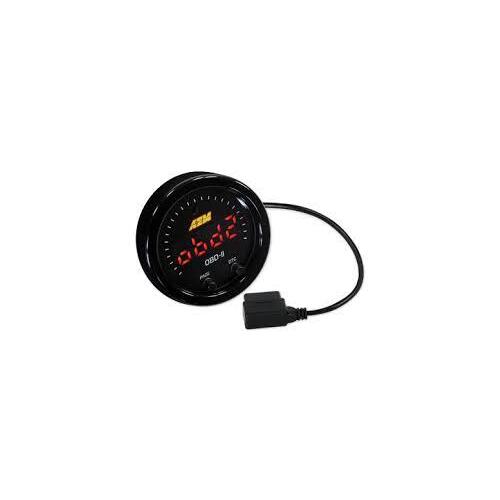

AEM X-Series Digital OBDII Gauge

AEM’s X-Series OBDII gauge (PN 30-0311) puts multiple channels of data at your fingertips by reading the CAN bus stream of your vehicle’s OBD port and transmitting those channels to the gauge display. It reads Diagnostic Trouble Codes (DTCs) and gives you the ability to clear codes. Wiring is as simple as connecting the gauge to your vehicle’s OBDII port using the supplied connector! Because the X-Series OBDII gauge reads OBDII parameters transmitted through a vehicle’s CAN datastream, it will only work on 2008+ model year vehicles.

NOTE: Please check OEM ECU CAN protocol prior to ordering. AEM 30-0311 only supports the ISO 15765 CAN OBDII protocol which has been standardized in all vehicles sold in the US from 2008 and newer but may not suit your vehicle.

NOTE: Includes black bezel and black faceplate only. Silver bezel and white faceplate available separately (30-0311-ACC).

EASY TO USE

Use the ‘Page’ button on the gauge face to scroll through available channels of data transmitted through the OBD port. Possible channels are listed below and may include IAT, EGT, RPM, Ethanol %, MAF, Fuel Pressure, Manifold Pressure, Boost Pressure, TPS, Vehicle Speed, Lambda and more (channel availability is ultimately dependent upon what channels are programmed to transmit by the vehicle manufacturer).

READ & CLEAR TROUBLE CODES

The ‘DTC’ button tells the gauge to scan for trouble codes and will report any stored DTCs, allowing you to look them up and determine the course of repair. This button also allows users to cleat DTCs once the problem is resolved.
The X-Series OBDII Gauge has a bright four-digit LED display that is 87% larger than our original digital gauges and provides better readability. A sweeping LED “needle” lines the edge of the gauge face for quick reference. A 33% overall increase in the gauge face display makes it easier to see at a glance. X-Series Gauges come with a black bezel and faceplate, and an optional silver bezel/white faceplate accessory kit is available (PN 30-0311-ACC, sold separately).

Despite the larger display, X-Series Gauges are contained in a standard 2-1/16th-inch (52mm) diameter housing for mounting in a standard gauge pod. Thanks to an advanced single board design, X-Series Gauges have an incredibly slim overall depth of under 0.825”, with a cup depth of only 0.200.” This shallow cup depth allows X-Series Digital Gauges to be mounted practically anywhere.

Features:

• Reads data channels from 2008+ MY vehicles through the OBDII port!
• Reads and clears Diagnostic Trouble Codes (DTCs)!
• Easy to install and wire –power and data come from OBDII port using supplied connector
• Slim 0.825” overall gauge depth and 0.200” cup depth – mount them virtually anywhere!
• 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
• Positive locking connector provides secure connection
• Auto dimming sensor delivers ideal display brightness
• 24 green outer LEDs for quick reference to engine parameter
• Black bezel and black faceplate included (silver bezel/white faceplate sold separately, PN 30-0311-ACC)
• Compatible with vehicle/system voltages up to 16V
