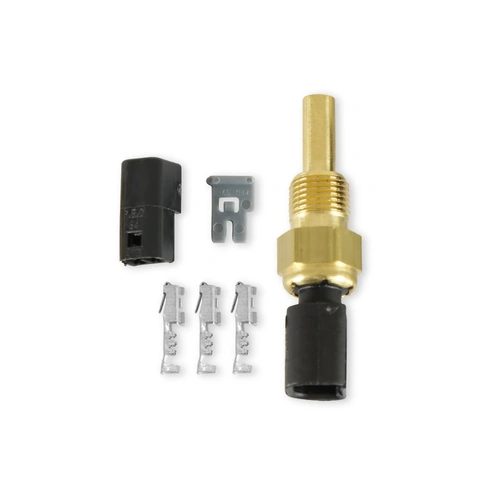

30-2012 - 1/8" Water Temp Sensor Kit

• Accuracy: < 2 °C / 3.6 °
• Operating Temp: -40C to 200C / -40F to 392F
• Resistive Range (?): See Table
• Dissipation Constant: 12 mW/ °C. The ratio, at a specified ambient temperature, of the change in the power dissipation of the sensor to the resultant temperature change of the thermistor. Test medium: silicone oil.
• Thermal Time Constant: 10 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil.
• Sensor Body Material: Brass
• Thread: 1/8"-27 PTF
• Hex Size: 1/2"
• Installation Torque: 13.5Nm / 10 ft-lbs
• Weight: 12.2g
• Elec. Termination: Connector. Includes mating connector, pins & pin lock
• Includes: Water Temp Sensor, Connector, Pins & Pin Lock

Fitment Table

Universal Fit
This product may require modification.
