AEM 340lph E85 High Flow In-Tank Fuel Pump (65mm, Hooks, Offset Inlet), WRX/STI/FXT/LGT, R35 GTR 50-1215

AEM's 340LPH E85-Compatible High Flow In-Tank Fuel Pumps feature robust internal construction that is designed to withstand the low lubricity characteristics of ethanol and methanol fuels, and are tested to work with ethanol fuels up to E100, methanol fuels up to M100 and all types of gasoline. Its compact, short body design (65mm length) with mounting hooks also makes it ideal in universal applications that have fuel tanks with tight tolerances.

The AEM 340LPH E85-Compatible High Flow In-Tank Fuel Pump is designed for in-tank mounting on high performance naturally aspirated and forced induction vehicles. It features a compact 39mm diameter that fits most applications and an offset inlet design that eases installation.

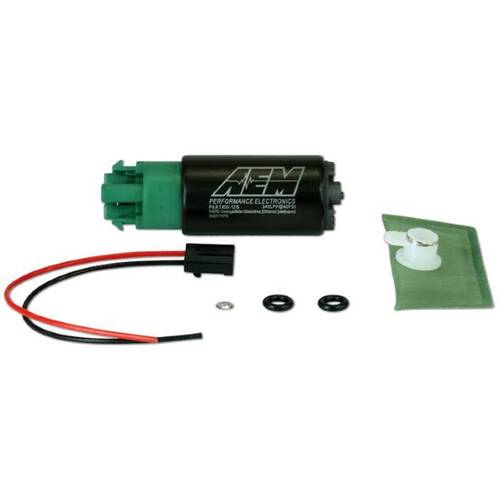

The 340LPH E85-Compatible High Flow In-Tank fuel pump includes a wiring harness, pre filter and O-rings. Every AEM 340LPH E85-Compatible Fuel Pump is tested to flow 340 lph at 40 PSI before it is packaged for sale.

Features:

• Tested and compatible with ethanol fuels up to E100, methanol fuels up to M100 and all types of gasoline
• Designed for high output naturally aspirated and forced induction EFI vehicles
• In tank design
• Each pump is tested to flow 340 lph @ 40 PSI
• Compact body (39mm diameter x 65mm length)
• Includes Fuel Pump, installation instructions, wiring harness, pre filter and O-rings (use of stock isolator sleeve is recommended)

Vehicle Compatibility:

Fits most 39mm x 65mm hooked fuel pump application* including (*see notes below):

• 2008-2014 Subaru WRX
• 2008+ Subaru STI
• 2008-2013 Subaru SH Forester XT
• 2004-2009 Subaru BL/BP Liberty GT
• 2007+ Nissan R35 GT-R (2 Required)

Notes:

• AEM fuel pumps include a universal pre filter which may not fit certain vehicle applications. Please refer to the OEM recommendations for filter replacement for your vehicle.
• Your vehicle's factory fuel pump wiring may not be adequate enough to handle the current draw of AEM's High Flow Fuel Pumps. Please refer to the Electrical Requirements section in the instructions document for proper wiring. You can download a copy of the instructions from the BUY/INSTRUCTIONS tab on the product pages of our website.
• It is imperative to ensure that the polarity of the electrical plug in your tank is correct for you pump if you choose to use it. If it is not correct you can either re-pin it or use the supplied plug.
• Although AEM's High Flow Fuel Pumps are the same physical size as many OEM fuel pumps, they may not be appropriate for a specific application. It is imperative that you check the fuel pump sizing for your vehicle before purchasing an AEM High Flow Fuel Pump.
• AEM does not condone or approve of the modification of a tank to accommodate a High Flow Fuel Pump and cannot guarantee the pump's performance or operation if any modifications are made.

TECHNICAL SPECS:

• Weight: 12.5oz (354grams)
• Outside Diameter: 39mm OD
• External Materials: Black plated steel with laser etching, green end caps
• Inlet Fitting: 7.7mm ID, 11.0mm OD. Offset Inline
• Outlet Fitting: 8 mm hose clamp. Offset
• PRV Activation: 80 PSI
• Impeller Design: Single Scroll Ceramic Turbine

VOLTAGE SPECS:

• Connector Terminal: 6 mm Spade (pos/neg)
• Min Voltage Input: 6 volts
• Max Voltage Input: 18 volts
• Current Draw (40 psi): 12 amps (13.5v)
• Current Draw (80 psi): 15 amps (13.5v)
• Fuse: 20 amps (13.5v)

* Power rating given at 40 PSI, 13.5v at the pump terminal with a BSFC of .5. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.

Hard Wire Kit Option:

Get the most out of your new high flow fuel pump by ensuring it gets the voltage it needs. Old, compromised OE wiring can limit the voltage your fuel pump receives. A hardwire kit includes everything you need to safely, easily, and reliably wire your pump directly to your battery, ensuring no matter how hard you push your pump, your wiring will be up to the task. We especially recommend this kit for use in cars over 10 years old, cars making over 400whp, and cars which were originally not designed for high horsepower.

Select an AEM hard wire kit when adding to cart.
