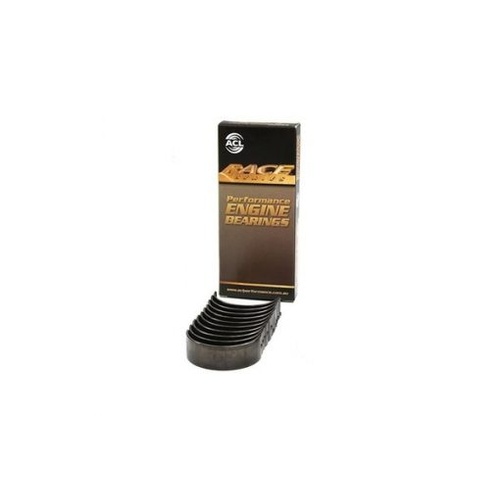

ACL RACE BEARING, 4B8366H-.50

ACL Race Series Rod Bearings for Toyota 3SGTE Race Series Size: .50

Calculate Shipping

Australia wide rate - $25.00 (ETA: 3 days)

Item: ACL Race Series Rod Bearings for Toyota 3SGTE Race Series Size: .50

Quick Info

Performance rod bearings
Designed for high RPM
High load carrying capacity

Product Details

ACL Race Rod Bearing Set – Toyota 3SGE 3SGTE Size: .50

ACL Performance Race Bearings are manufactured with a tri-layer metal with a hardened steel backing in order to withstand high RPM conditions, high stress loads, and high temperatures. Each ACL race bearing design features the following:

Large chamfer to accomodate larger crankshaft fillets
3/4 groove to provide optimum oil supply to rods and to maximize load carrying capacity
Increased crush and tighter wall tolerance for better seating
Improved overlay and reduced thickness for increased fatigue strength
Hardened steel backing to maintain crush under high loads and temperatures

*** Price is for 1 COMPLETE SET OF ROD BEARINGS FOR 1 ENGINE ***

Part Number	4B8366H	4B8366HX
Available Sizes	STD, .025, .25, .50	STD
Oil Clearance	Standard	0.001″ Extra
Half Type	Identical Halves	Identical Halves
Material	Tri-metal hardened steel backs	Tri-metal hardened steel backs
Min. Std. Shaft Size	1.8892in / 47.985mm	1.8892in / 47.985mm
Max. Std. Shaft Size	1.8898in / 48.000mm	1.8898in / 48.000mm
Min. Std. Tunnel Size	2.008in / 51.004mm	2.008in / 51.004mm
Max. Std. Tunnel Size	2.0088in / 51.024mm	2.0088in / 51.024mm
Max Wall at Crown	0.0586in / 1.488mm	0.0581in / 1.475mm
Max. Overall Length	0.8386in / 21.30mm	0.669in / 17mm
Notes
