ACL RACE BEARING, 6B2960H-STD

ACL Race Series Rod Bearings for RB26DETT RB25 DET6B2960H-STD

Calculate Shipping

Australia wide rate - $25.00 (ETA: 3 days)

Item: ACL Race Series Rod Bearings for RB26DETT RB25 DET6B2960H-STD

Quick Info

Performance rod bearings
Designed for high RPM
High load carrying capacity

Product Details

ACL performance race rod bearings for the Nissan RB265DETT & RB25DET engine. ACL race bearings are manufactured with a tri-layer metal with a hardened steel backing in order to withstand high RPM conditions, high stress loads, and high temperatures. Each ACL race bearing design features the following:

Large chamfer to accomodate larger crankshaft fillets
3/4 groove to provide optimum oil supply to rods and to maximize load carrying capacity
Incresed crush and tighter wall tolerance for better seating
Improved overlay and reduced thickness for increased fatigue strength
Hardened steel backing to maintain crush under high loads and temperatures

*** Price is for 1 COMPLETE SET OF ROD BEARINGS FOR 1 ENGINE ***

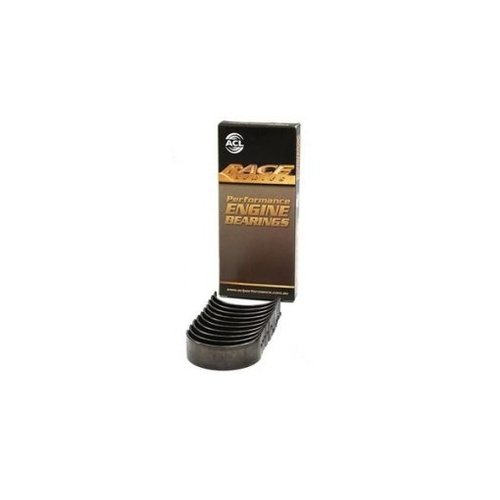

*** Picture shown is reference only, not the RB Rod kit ***

ACL Race Rod Bearings Nissan RB26DETT Detailed Specifications
Part Number	6B2960H	6B2960HX
Available Sizes	STD, 0.025, 0.25	STD
Oil Clearance	Standard	+0.001″ Extra
Half Type	Identical Halves	Identical Halves
Material	Tri-metal hardened steel backs	Tri-metal hardened steel backs
Min. Std. Shaft Size	1.8880″ / 47.956mm	1.8880″ / 47.956mm
Max. Std. Shaft Size	1.8887″ / 47.974mm	1.8887″ / 47.974mm
Min. Std. Tunnel Size	2.0079″ / 51.000mm	2.0079″ / 51.000mm
Max. Std. Tunnel Size	2.0084″ / 51.013mm	2.0084″ / 51.013mm
Max Wall at Crown	0.0592″ / 1.503mm	0.0587″ / 1.490mm
Max. Overall Length	0.6732″ / 17.10mm	0.752″ / 19.10mm
Notes	–
