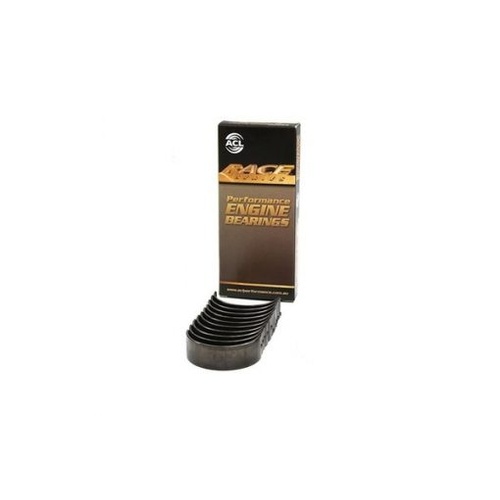

ACL Race Series Main Bearings for Mitsubishi 1997-2350cc Size: STD
5M1186HX-STD
Description
Item: ACL Race Series Main Bearings for Mitsubishi 1997-2350cc Size: STD
Quick Info
- Size: STD
- Direct Fit
- Great for engine rebuild
Product Details
ACL Performance Race Bearings are manufactured with a tri-layer metal with a hardened steel backing in order to withstand high RPM conditions, high stress loads, and high temperatures. Each ACL race bearing design features the following:
- Large chamfer to accomodate larger crankshaft fillets
- 3/4 groove to provide optimum oil supply to rods and to maximize load carrying capacity
- Incresed crush and tighter wall tolerance for better seating
- Improved overlay and reduced thickness for increased fatigue strength
- Hardened steel backing to maintain crush under high loads and temperatures
- Size: STD
Note: Pictures may not be actual product.
HX Series Bearings are .0005″ thinner per half to give .001″ extra clearance for standard sized cranks.
Specifications
| SKU | acl-5M1186HX-STD |
| Brand | ACL |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.400m |
| Shipping Height | 0.200m |
| Shipping Length | 0.300m |
