SKU: aeromotive-17313

07-12 Shelby GT500 Stealth A1000 Street Fuel System with 5.4L 4-V Fuel Rails(17313)

AEROMOTIVE fuel system 17313

$4,984.67


In Stock


Calculate Shipping



Australia wide rate - $55.00

Description

Description

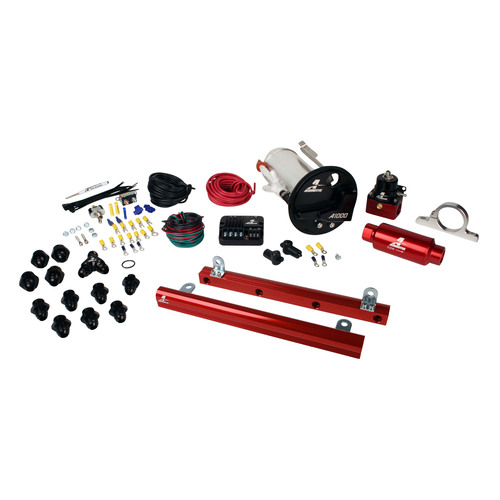

This Mustang Stealth Fuel System includes the Aeromotive Stealth A1000 fuel pump, designed to fit inside the stock, OEM Mustang tank and integrate with the stock fuel-level sending unit and jet-siphon transfer pump. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. This Serious Aeromotive Fuel System provides all the necessary fuel system hard-parts including the Stealth In-Tank Fuel Pump, 40-micron High Flow Filter, One Piece CNC Y-block, Billet High-Flow Fuel Rails, Billet EFI Pressure Regulator and all necessary Aeromotive high flow, ORB Port Fittings.  Fuel Pump Electrical Supply is also provided, including our amazing Fuel Pump Speed Controller, designed to keep fuel cool in cars that will see extended street driving but still need full pump performance for all out racing.  Fuel Lines and Hose-Ends sold separately.  The purchase of a Tach Adapter will be required to operate Pump Speed Controller.

This system contains the following parts (click on any item for more details):












Additional information

Weight 18.53 lbs
Dimensions 19 x— 13 x— 13 in

Mounting Configuration: External

CARB or EFI Power Adder FUEL Horsepower

P/N 17313: 07-12 GT500 Stealth EFI Fuel System.
For Mustang GT500s with GT500 4-Valve 5.4L Engine.

  • Rated for EFI engines producing up to 1,000 Flywheel HP Forced Induction or 1,300 Flywheel HP Naturally Aspirated.
  • For Mustang Shelby GT500s with 5.4L GT500 Supercharged 4V engine and/or equivalent intake.
  • Includes Aeromotives Fuel Pump Speed Controller for continuous duty street/strip applications.
  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

For Limited Duty/Racing Applications See

Specifications

SKU aeromotive-17313
Brand AEROMOTIVE
Shipping Weight 35.0000kg
Shipping Width 0.400m
Shipping Height 0.200m
Shipping Length 0.300m
