Description

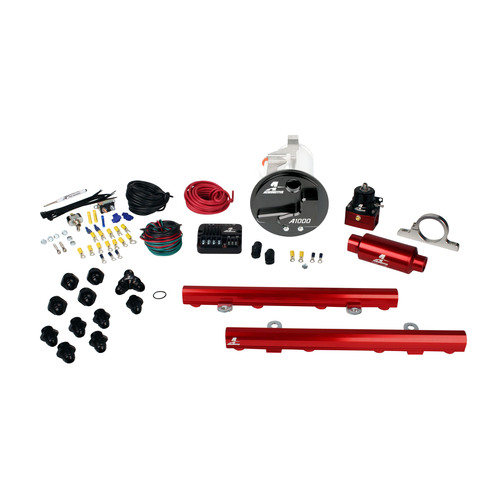

This Mustang Stealth Fuel System includes the Aeromotive Stealth A1000 fuel pump, designed to fit inside the stock, OEM Mustang tank and integrate with the stock fuel-level sending unit and jet-siphon transfer pump. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. This Serious Aeromotive Fuel System provides all the necessary fuel system hard-parts including the Stealth In-Tank Fuel Pump, 40-micron High Flow Filter, One Piece CNC Y-block, Billet High-Flow Fuel Rails, Billet EFI Pressure Regulator and all necessary Aeromotive high flow, ORB Port Fittings.  Fuel Pump Electrical Supply is also provided, including our amazing Fuel Pump Speed Controller, designed to keep fuel cool in cars that will see extended street driving but still need full pump performance for all out racing.  Fuel Lines and Hose-Ends sold separately.  The purchase of a Tach Adapter will be required to operate Pump Speed Controller.

This system contains the following parts (click on any item for more details):

Additional information

Mounting Configuration: External

P/N 17309 05-09 Mustang GT Stealth A1000 System.
For Mustang GTs with Coyote 4-Valve 5.0L Swap.

• Rated for EFI engines producing up to 1,000 Flywheel HP Forced Induction or 1,300 Flywheel HP Naturally Aspirated.
• For Mod Motor Mustangs equipped with a 5.0L 4V Coyote engine and/or equivalent intake.
• Includes Aeromotives Fuel Pump Speed Controller for continuous duty street/strip applications.
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

For Limited Duty/Race Applications See
